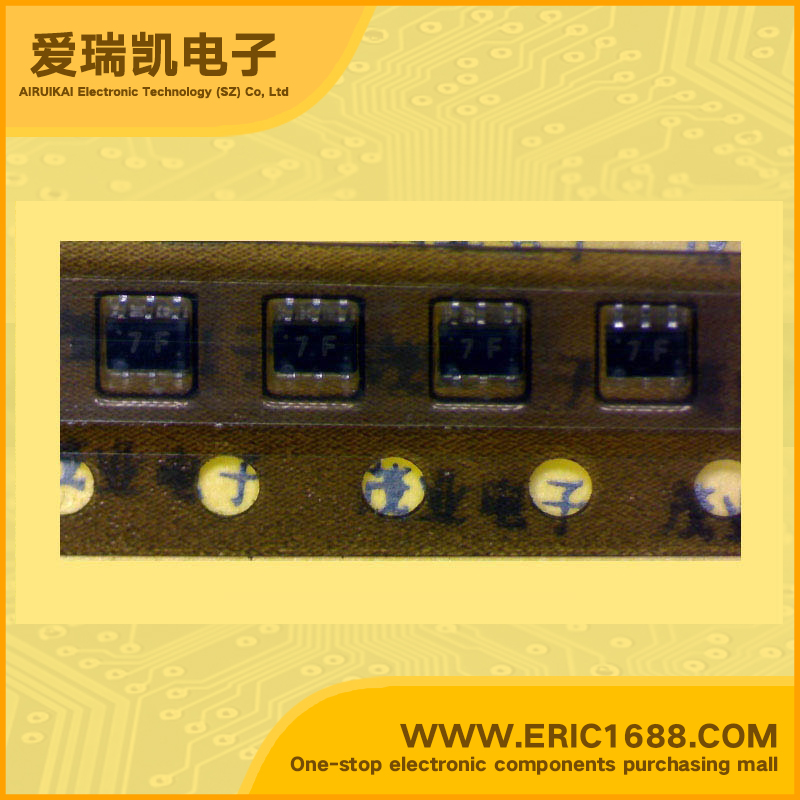

XP6534 NPN+NPN Complex Bipolar Transistor 30V 15mA HEF=40`260 SOT-363/SC-88 marking 7F switch and digital circuit application

Model：XP6534
Mark / screen / code / typing：7F
Manufacturer：
Date Code：05+
Package：SOT-363/SC-88
Standard Package：3000
Min Order：10

Hot selling goods

Product description

V(BR) CBO Collector-Base Voltage	30V
V(BR) CEO Collector-Emitter Voltage	20V
Collector Current(IC)	15MA
Transtion Frequency(fT)	650MHZ
DC Current Gain(hFE)	40~260
VCE (sat) Collector-Emitter Saturation Voltage
Power Dissipation （Pd）	150MW
Description & Applications	Silicon NPN epitaxial planer transistor For high-frequency amplification ■ Features ● Two elements incorporated into one package. ● Reduction of the mounting area and assembly cost by one half. ■ Basic Part Number of Element ● 2SC2404 × 2 elements
Technical Documentation Download	Read Online
