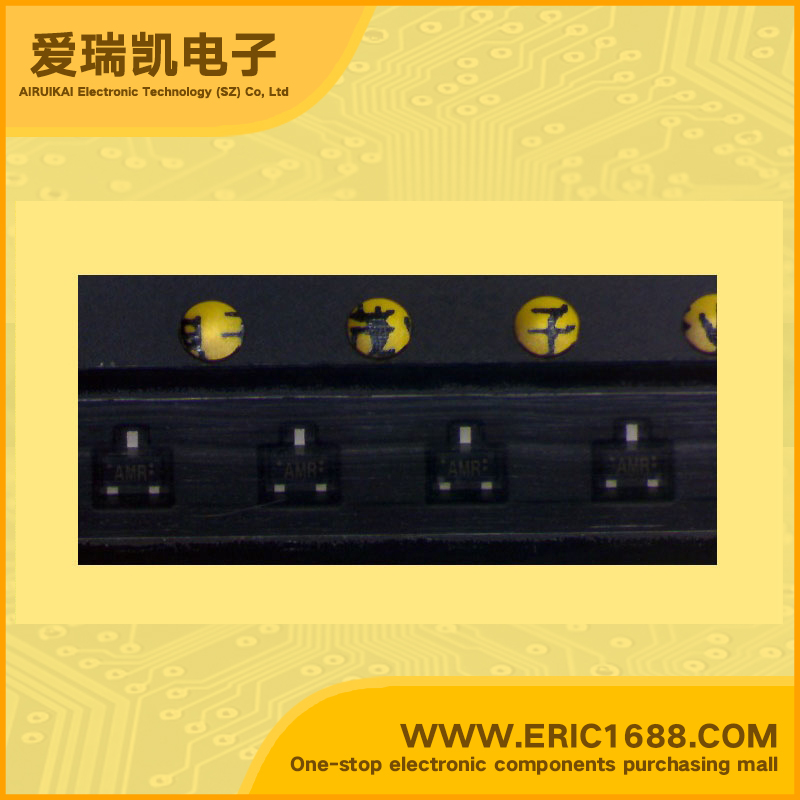

2SC4656J-R NPN Transistors(BJT) 50V 50mA 250MHz 250~500 60mV SOT-523/SC-75 marking AM R high-frequency amplifier
| 集电极-基极反向击穿电压V(BR)CBO Collector-Base Voltage(VCBO) |
50V |
| 集电极-发射极反向击穿电压V(BR)CEO Collector-Emitter Voltage(VCEO) |
50V |
| 集电极连续输出电流IC Collector Current(IC) |
50mA |
| 截止频率fT Transtion Frequency(fT) |
250MHz |
| 直流电流增益hFE DC Current Gain(hFE) |
250~500 |
| 管压降VCE（sat） Collector-Emitter Saturation Voltage |
60mV |
| 耗散功率Pc Power Dissipation |
125mW/0.125W |
| Description & Applications | Features •Silicon PNP epitaxial planer type •For high-frequency amplification Complementary to 2SA1791J •High transition frequency fT. •Small collector output capacitance Cob •SS-Mini type package, allowing downsizing of the equipment and automatic insertion through the tape packing and the magazine packing. |
| 描述与应用 | 特点 •PNP硅外延平面型 •对于高频放大互补 2SA1791J •高转换频率fT。 •小集电极输出电容芯 •SS-迷你型包装，让瘦身的设备通过自动插入带包装盒包装。 |
