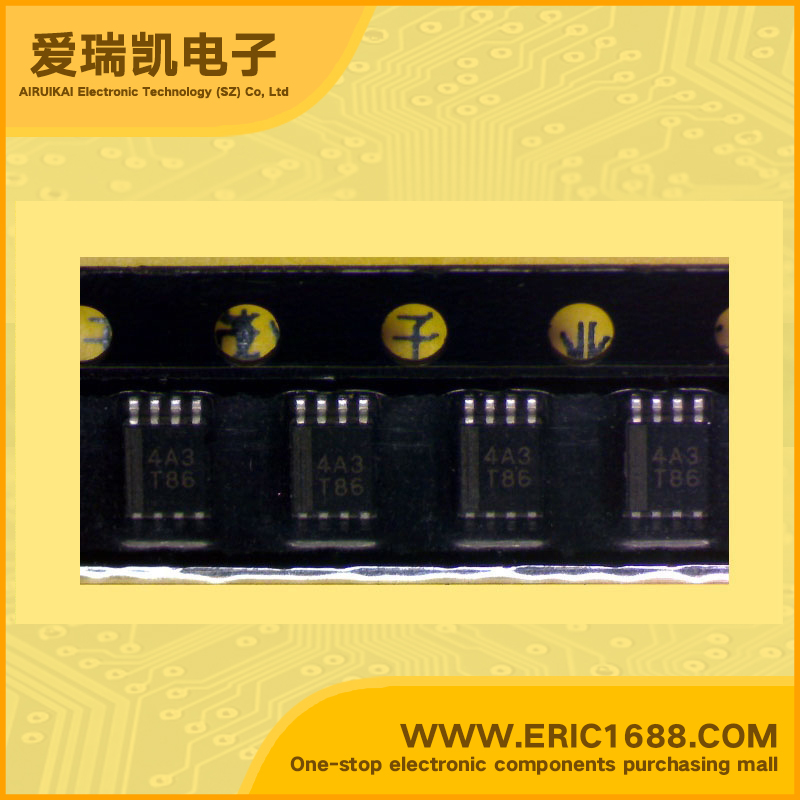

Integrated Circuit(IC) XOR gate HD74LV2GT86AUSE SSOP8 marking T86

Hot selling goods

Product description
逻辑类型
Logic Type
异或门 XOR Gate
电路数
Number of Circuits
2
输入数
Number of Inputs
2
电源电压Vcc
Voltage - Supply
3V~5.5V
静态电流Iq
Current - Quiescent (Max)
10uA
输出高,低电平电流
Current - Output High, Low
-12mA,12mA
低逻辑电平
Logic Level - Low
0.6V~0.8V
高逻辑电平
Logic Level - High
1.5V~2V
传播延迟时间@Vcc,CL
Max Propagation Delay @ V, Max CL
6.5ns @ 5V,50pF
Description & Applications2-input Exclusive-OR Gate / CMOS Logic Level Shifter;Features The basic gate function is lined up as Renesas uni logic series Supplied on emboss taping for high-speed automatic mounting TTL compatible input level Supply voltage range : 3.0 to 5.5 V Operating temperature range : –40 to +85°C Logic-level translate function 3.0 V CMOS logic → 5.0 V CMOS logic (@VCC = 5.0 V) 1.8 V or 2.5 V CMOS logic → 3.3 V CMOS logic (@VCC = 3.3 V) All inputs VIH (Max.) = 5.5 V (@VCC = 0 V to 5.5 V) All outputs VO (Max.) = 5.5 V (@VCC = 0 V) Output current ±6 mA (@VCC = 3.0 V to 3.6 V), ±12 mA (@VCC = 4.5 V to 5.5 V) All the logical input has hysteresis voltage for the slow transition
描述与应用2输入异或门/ CMOS逻辑电平转换器;特性 基本门功能一字排开瑞萨单向逻辑系列 提供压纹盘带高速自动安装 TTL兼容输入电平 电源电压范围:3.0至5.5 V 工作温度范围:-40至+85°C 逻辑电转换功能 3.0 V CMOS逻辑→5.0 V CMOS逻辑(VCC= 5.0 V) 1.8 V或2.5 V CMOS逻辑→3.3 V CMOS逻辑(VCC = 3.3 V) 所有输入VIH(最大)=5.5 V(VCC= 0 V至5.5 V) 所有输出VO(最大)=5.5 V(VCC=0 V) 输出电流±6毫安(VCC= 3.0 V到3.6 V),±12毫安(VCC= 4.5 V至5.5 V) 所有逻辑输入为慢速转换具有滞后电压
