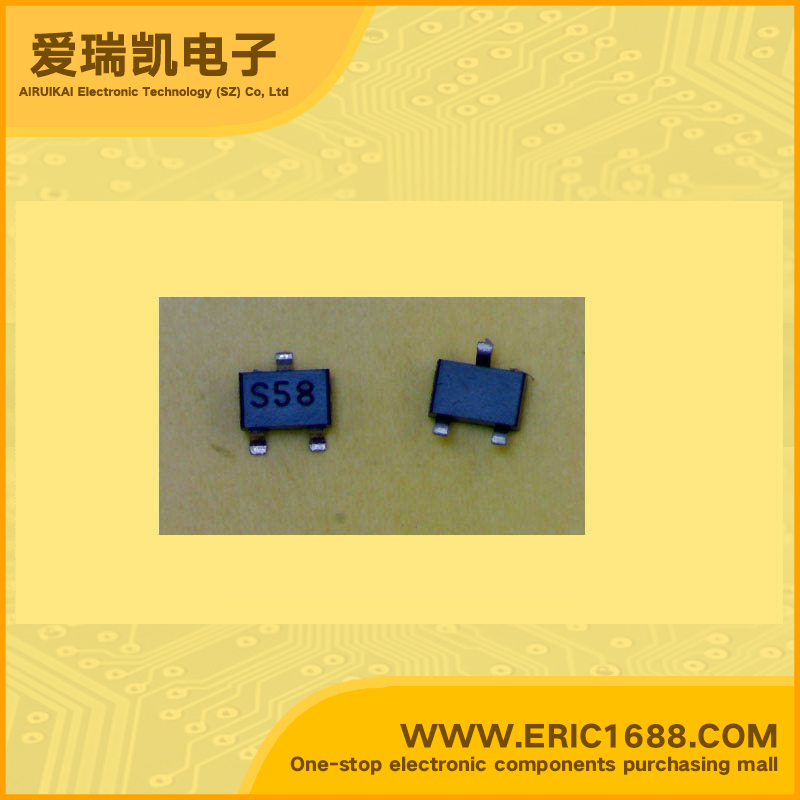

FJX4008RTF PNP transistors（BJT） -50V -100mA/-0.1A 200MHz 56 -300mV/-0.3V SOT-323/SC-70 inverter/interface circuit/ driver/bias resistor
| 集电极-基极反向击穿电压V(BR)CBO Collector-Base Voltage(VCBO) | -50V |
| 集电极-发射极反向击穿电压V(BR)CEO Collector-Emitter Voltage(VCEO) | −50V |
| 集电极连续输出电流IC Collector Current(IC) | −100mA/-0.1A |
| 截止频率fT Transtion Frequency(fT) | 200MHz |
| 直流电流增益hFE DC Current Gain(hFE) | 56 |
| 管压降VCE（sat） Collector-Emitter SaturationVoltage | -300mV/-0.3V |
| 耗散功率Pc PoWer Dissipation | 200mW/0.2W |
| Description & Applications | Switching Application (Bias Resistor Built In) • Switching circuit, Inverter, Interface circuit, Driver Circuit • Built in bias Resistor (R1=47KΩ, R2=22KΩ) • Complement to FJX3008R |
| 描述与应用 | 切换应用程序（偏置电阻内置） •开关电路，逆变器，接口电路，驱动器电路 •内置偏置电阻（R1=47KΩ，R2=22KΩ） •FJX3008R互补 |
