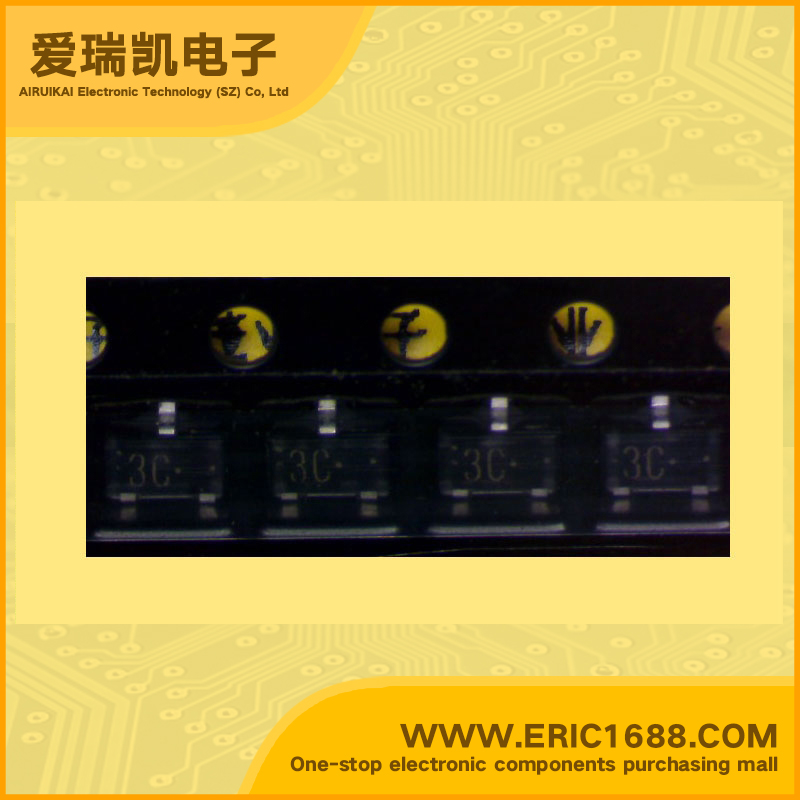

2SC572500L NPN Transistors(BJT) 20V 2A 280MHz 200~800 40mV SOT-23/SC-59 marking 3C DC-DCswitch

Hot selling goods

Product description
集电极-基极反向击穿电压V(BR)CBO
Collector-Base Voltage(VCBO)
20V
集电极-发射极反向击穿电压V(BR)CEO
Collector-Emitter Voltage(VCEO)
15V
集电极连续输出电流IC
Collector Current(IC)
2A
截止频率fT
Transtion Frequency(fT)
280MHz
直流电流增益hFE
DC Current Gain(hFE)
200~800
管压降VCE(sat)
Collector-Emitter Saturation Voltage
40mV
耗散功率Pc
Power Dissipation
600mW/0.6W
Description & ApplicationsSilicon NPN epitaxial planar type For DC-DC converter ■ Features • Low collector-emitter saturation voltage VCE(sat) • Mini type package, allowing downsizing of the equipment and automatic insertion through the tape packing
描述与应用NPN硅外延平面型 用于DC-DC转换器 ■特点 •低集电极 - 发射极饱和电压VCE(饱和) •迷你型包装,使瘦身的设备和 通过自动插入磁带包装
