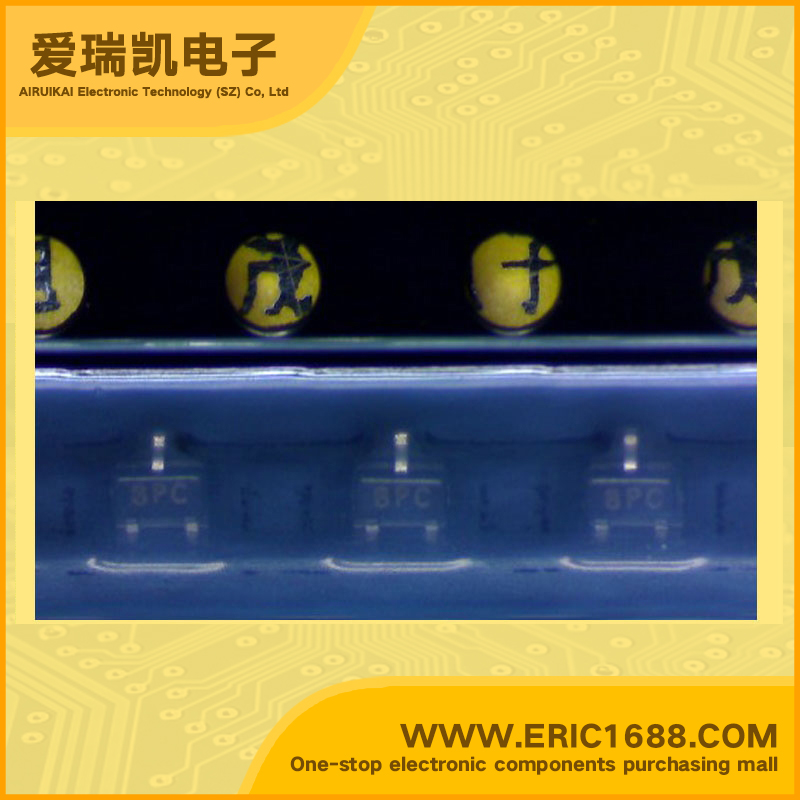

DTC144WET1 NPN Bipolar Digital Transistor (BRT) 50V 100mA/0.1A 47k 22k SOT-523 marking 8PC

Hot selling goods

Product description
集电极-基极反向击穿电压V(BR)CBO Collector-Base Voltage(VCBO)50V
集电极-发射极反向击穿电压V(BR)CEO Collector-Emitter Voltage(VCEO)50V
集电极连续输出电流IC Collector Current(IC)100mA/0.1A
基极输入电阻R1 Input Resistance(R1)47KΩ/Ohm
基极-发射极输入电阻R2 Base-Emitter Resistance(R2)22KΩ/Ohm
电阻比(R1/R2) Resistance Ratio2.14
直流电流增益hFE DC Current Gain(hFE)80
截止频率fT Transtion Frequency(fT)250MHz
耗散功率Pc Power Dissipation0.2W/200mW
Description & ApplicationsFeatures • Simplifies Circuit Design • Reduces Board Space • Reduces Component Count • The SC−75/SOT−416 Package Can be Soldered Using Wave or Reflow • The Modified Gull−Winged Leads Absorb Thermal Stress During Soldering Eliminating the Possibility of Damage to the Die • Pb−Free Packages are Available
描述与应用特性 •简化电路设计 •缩小板面空间 •减少了元件数量 •SC-75/SOT-416包装可以焊接使用波或回流 •改进的鸥翼引线在焊接热应力吸收消除模具损坏的可能性 •无铅包装可用
