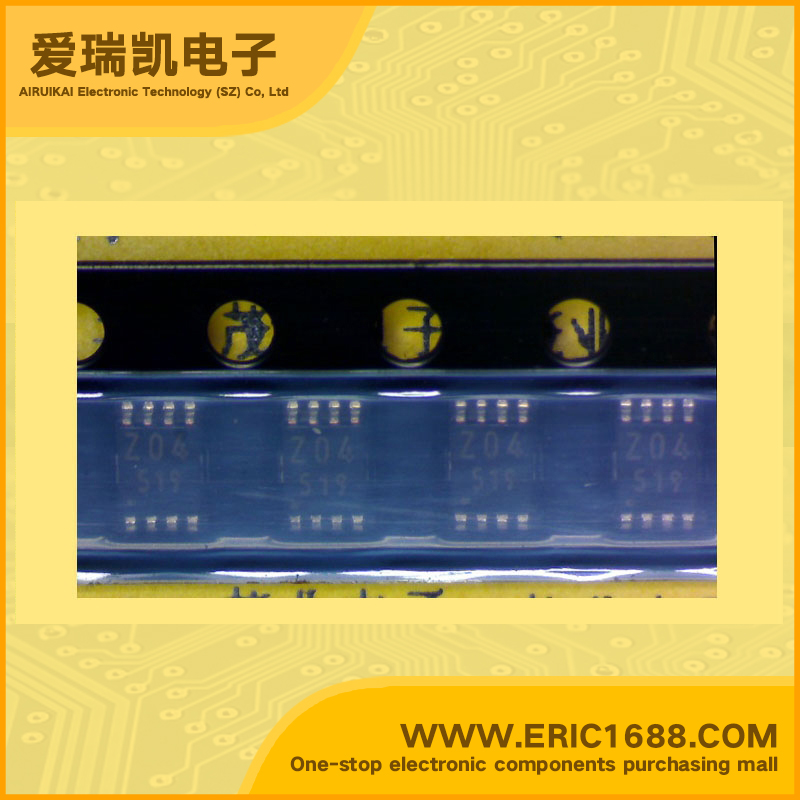

Integrated Circuit(IC) inverter KIC7WZ04FK US8 marking Z04

Hot selling goods

Product description
逻辑类型
Logic Type
反相器 Inverter
电路数
Number of Circuits
3
输入数
Number of Inputs
1
电源电压Vcc
Voltage - Supply
1.65V~5.5V
静态电流Iq
Current - Quiescent (Max)
1uA
输出高,低电平电流
Current - Output High, Low
-32mA,32mA
低逻辑电平
Logic Level - Low
0.1V~0.55V
高逻辑电平
Logic Level - High
1.5V~3.8V
传播延迟时间@Vcc,CL
Max Propagation Delay @ V, Max CL
2.3ns @ 4.5V,50pF
Description & Applicationstriple inverter;Features High output drive : ±24mA(min.) @VCC=3V Super high speed operation : tpd 2.3ns(typ.) @VCC=5V, 50pF Operation voltage range : VCC(opr)=1.65~5.5V Latch-up performance : ±500mA or more ESD performance : ±200V or more (EIAJ) ±2000V or more (MIL) Power down protection is provided on all inputs and outputs
描述与应用三重逆变器;特性 高输出驱动器的±24mA电流(最小)@ VCC= 3V 超高速运转:TPD2.3ns(典型值)@ VCC= 5V,50PF 工作电压范围:VCC(OPR)= 1.65〜5.5V 闭锁性能:±500mA或以上 ESD性能:±200V以上(EIAJ) ±2000V或以上(MIL) 掉电保护提供所有输入和输出
