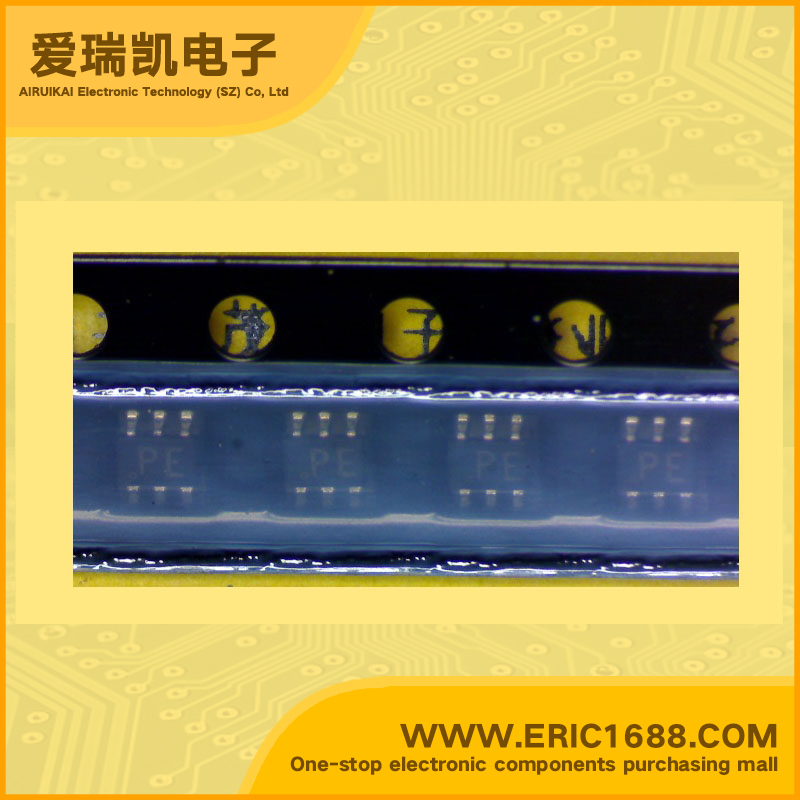

KRA755U PNP+PNP Complex Bipolar Digital Transistor -50V -100mA 200mW/0.2W R1=2.2KΩ R2=47KΩ SOT-363/US6/SC70-6 marking PE switching inverting interface driver circuit

Hot selling goods

Product description

V(BR) CBO

Collector-Base Voltage

 -50V

V(BR) CEO

Collector-Emitter Voltage

 -50V
Collector Current(IC)  -100MA/-0.1A
 Input Resistance(R1)   2.2KΩ
Base-Emitter Resistance(R2)   47KΩ
Base-Emitter Input Resistance Ratio (R1/R2)  0.0468
DC Current Gain(hFE)
Transtion Frequency(fT)  200mhz
Power Dissipation (Pd)  0.2W
Description & Applications  SWITCHING APPLICATION.
INTERFACE CIRCUIT AND DRIVER CIRCUIT APPLICATION.

FEATURES
With Built-in Bias Resistors.
Simplify Circuit Design.
Reduce a Quantity of Parts and Manufacturing Process.
High Packing Density.
Technical Documentation Download Read Online
