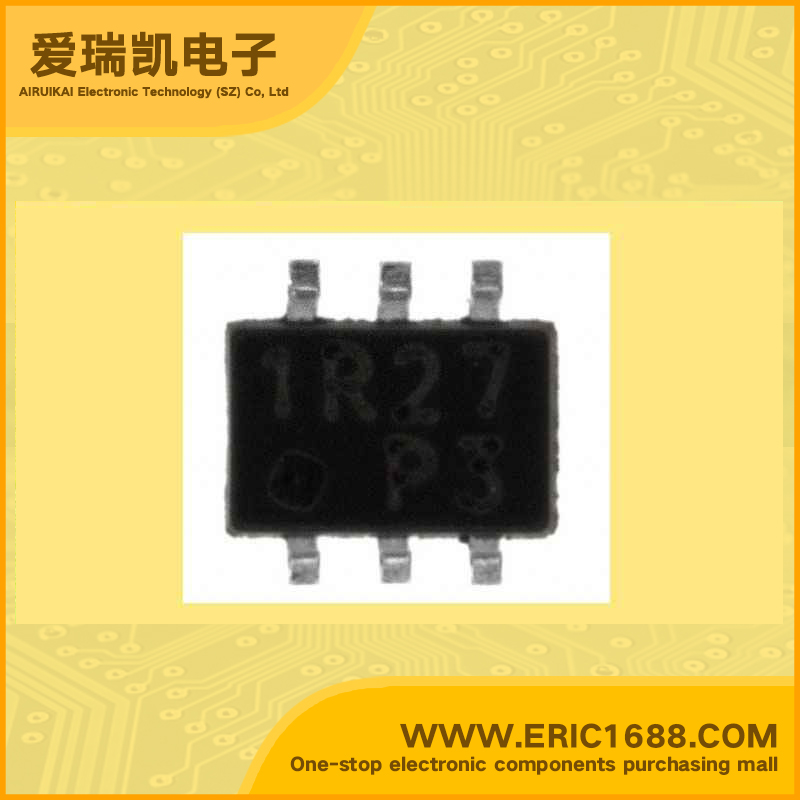

PQ1R27 LDO Voltage Regulator 2.7V 290mV/0.29V With Enable Pin SOT23L-6 marking 1R27 Short-Circuit Protection Over-Temperature Protection

Hot selling goods

Product description
电路数量
Number of Regulators
1
输入电压VIN
Voltage - Input
16V
输出电压VOUT
Voltage - Output
2.7V
输出电流Io
Current - Output
150mA/0.15A
最大压降VDO
Voltage - Dropout
290mV/0.29V
带使能脚EN/CE(ON/OFF功能)
With Enable Pin
有 Yes
最大耗散功率Pd
Power dissipation
400mW/0.4W
Description & ApplicationsLow Power-Loss Voltage Regulator ;• Compact surface mount type package (3.4 x 2.2 x 1.2mm) •Low power-loss (Dropout voltage: TYP. 0.16V/MAX. 0.26V at Io=60mA) •Low current operation type (Dissipation current at no load: TYP. 170µA) •Built-in ON/OFF control function (Dissipation current at OFF-state: MAX. 0.1µA) • Low voltage operation type (MIN. 1.8V) •Overcurrent, overheat protection functions
描述与应用低功率损耗电压调节器;•紧凑型表面贴装型封装       (3.4×2.2×1.2毫米) •低功率损耗       (漏失电压:TYP。0.26V0.16V/MAX的IO =60毫安时) •低电流操作类型       (无负载时的消耗电流170μATYP。) •内置的ON / OFF控制功能       (消耗电流在关闭状态:最大0.1μA) •低电压操作类型       (最小1.8V) •过流,过热保护功能
