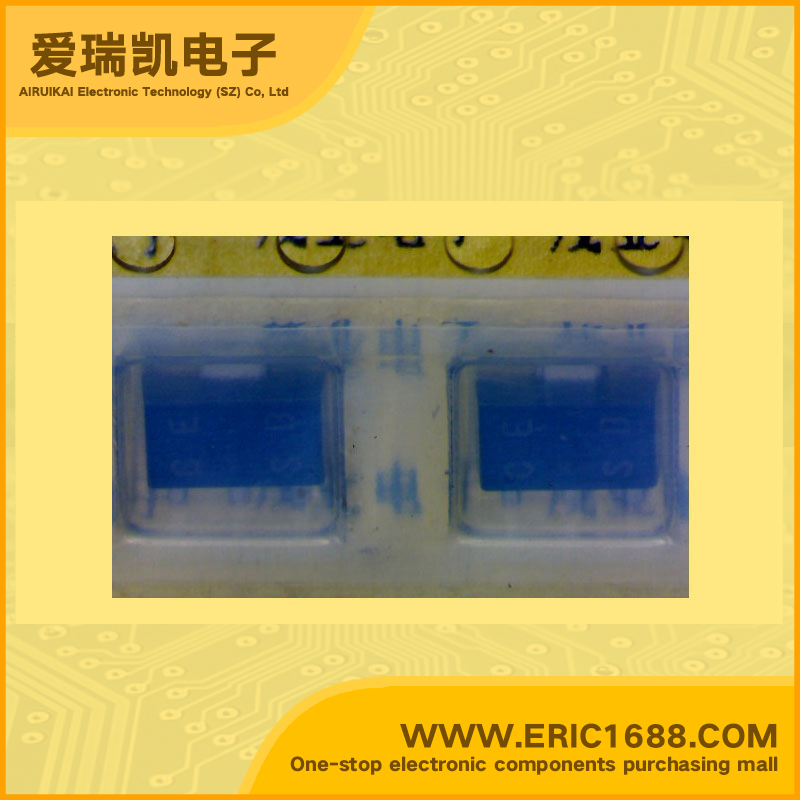

2SC3649S NPN Transistors(BJT) 180V 1.5A 120MHz 140~280 450mV/0.45V SOT-89/PCP marking CES high voltage switch

Model：2SC3649S
Mark / screen / code / typing：CES
Manufacturer：
Date Code：05+
Package：SOT-89/PCP
Standard Package：1000
Min Order：10

Hot selling goods

Product description

集电极-基极反向击穿电压V(BR)CBO Collector-Base Voltage(VCBO)	180V
集电极-发射极反向击穿电压V(BR)CEO Collector-Emitter Voltage(VCEO)	160V
集电极连续输出电流IC Collector Current(IC)	1.5A
截止频率fT Transtion Frequency(fT)	120MHz
直流电流增益hFE DC Current Gain(hFE)	140~280
管压降VCE（sat） Collector-Emitter Saturation Voltage	450mV/0.45V
耗散功率Pc Power Dissipation	500mW/0.5W
Description & Applications	NPN epitaxial planar Silicon Transistors High-Voltage Switching applications High breakdown voltage and large current capacity Very small size making it easy to provide high-density. Complementary to 2SA1419
描述与应用	NPN外延平面硅晶体管高电压开关应用高击穿电压和大电流的能力非常小的尺寸使其易于提供高密度。互补型2SA1455K
