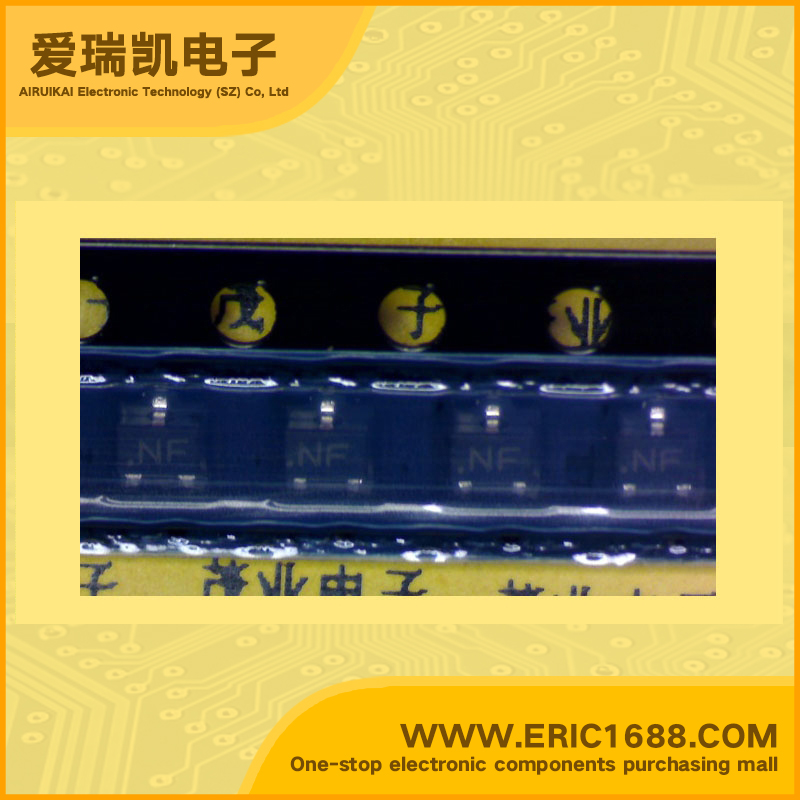

KRC406-RTK NPN Bipolar Digital Transistor (BRT) 100mA/0.1A 4.7k 47k SOT-323/SC-70/USM marking NF switch interface circuit driver circuit

Hot selling goods

Product description
集电极-基极反向击穿电压V(BR)CBO Collector-Base Voltage(VCBO)
集电极-发射极反向击穿电压V(BR)CEO Collector-Emitter Voltage(VCEO)50V
集电极连续输出电流IC Collector Current(IC)100mA/0.1A
基极输入电阻R1 Input Resistance(R1)4.7KΩ/Ohm
基极-发射极输入电阻R2 Base-Emitter Resistance(R2)47KΩ/Ohm
电阻比(R1/R2) Resistance Ratio0.1
直流电流增益hFE DC Current Gain(hFE)80-200
截止频率fT Transtion Frequency(fT)200MHz
耗散功率Pc Power Dissipation0.1W/100mW
Description & ApplicationsFEATURES SWITCHING APPLICATION. INTERFACE CIRCUIT AND DRIVER CIRCUIT APPLICATION. With Built-in Bias Resistors. Simplify Circuit Design. Reduce a Quantity of Parts and Manufacturing Process. High Packing Density
描述与应用特性 开关中的应用。 接口电路和驱动电路应用。 内置偏置电阻器。 简化电路设计。 减少了部件数量和制造工艺。 高密度封装
