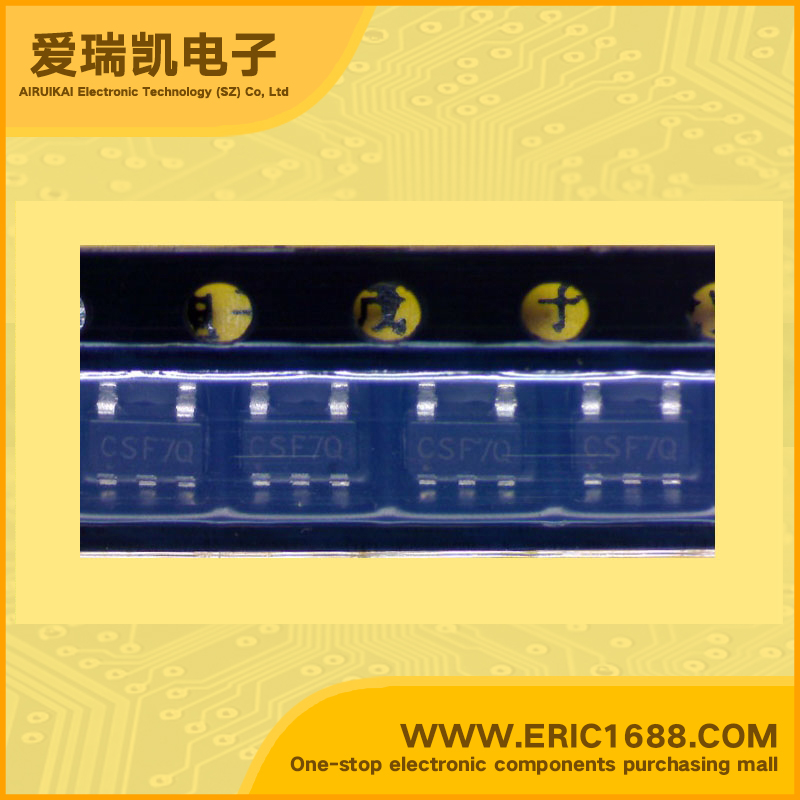

AAT3236IGV-3.0-T1 LDO Voltage Regulator 3V 300mV/0.3V With Enable Pin SOT-153/SOT23-5 marking CSF Short-Circuit Protection Over-Temperature Protection

Hot selling goods

Product description
电路数量
Number of Regulators
1
输入电压VIN
Voltage - Input
6V
输出电压VOUT
Voltage - Output
3V
输出电流Io
Current - Output
300mA/0.3A
最大压降VDO
Voltage - Dropout
300mV/0.3V
带使能脚EN/CE(ON/OFF功能)
With Enable Pin
有 Yes
最大耗散功率Pd
Power dissipation
526mW/0.526W
Description & Applications300mA CMOS High Performance LDO;•500mA Peak Output Current • Low Dropout - Typically 300mV at 300mA • Guaranteed 300mA Output • High Accuracy: ±1.5% • 100µA Quiescent Current • High Power Supply Ripple Rejection — 70dB at 1kHz — 50dB at 10kHz • Very Low Self Noise: 45µVrms • Noise Reduction Bypass Capacitor • Short-Circuit Protection • Over-Temperature Protection • Shutdown Mode for Longer Battery Life • Low Temperature Coefficient • Nine Factory-Programmed Output Voltages • SOT23 5-Pin or SC70JW 8-Pin Package • Cellular Phones • Notebook Computers • Personal Portable Electronics • Portable Communication Devices
描述与应用300mA的CMOS高性能LDO;•500mA峰值输出电流 •低压差 - 通常在300mA300mV的 •保证300mA输出 •高精度:±1.5% •100μA静态电流 •高电源纹波抑制 - 1kHz时为70dB - 50分贝在10kHz •极低的自噪声:45μVRMS •降噪绕道电容 •短路保护 •过温保护 •关断模式,更长的电池寿命 •低温度系数 •九厂编程输出电压 •SOT235引脚SC70JW8引脚封装 •蜂窝电话 •笔记本电脑 •个人便携式电子产品 •便携式通信设备
