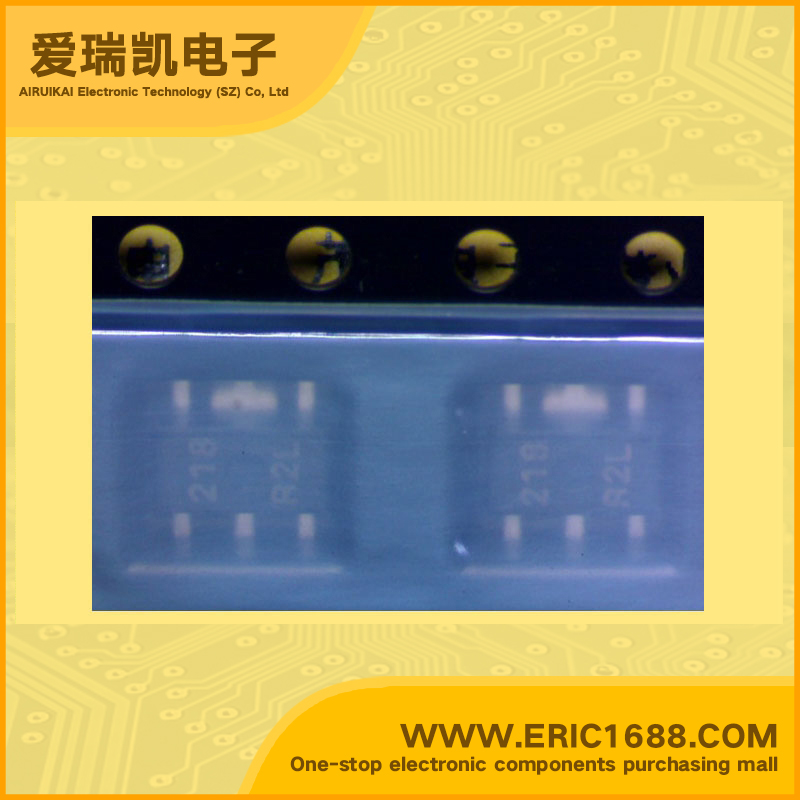

PQ2L2182MSP LDO Voltage Regulator 3.3/1.8V 160mV/240mV SOT89-5 marking 218 Short-Circuit Protection Over-Temperature Protection

Hot selling goods

Product description
电路数量
Number of Regulators
2
输入电压VIN
Voltage - Input
9V
输出电压VOUT
Voltage - Output
3.3/1.8V
输出电流Io
Current - Output
100mA/200mA
最大压降VDO
Voltage - Dropout
160mV/240mV
带使能脚EN/CE(ON/OFF功能)
With Enable Pin
无 No
最大耗散功率Pd
Power dissipation
900mW/0.9W
Description & Applications2-Output Type Low Power-Loss Voltage Regulators ;•Compact surface mount package (4.5×4.3×1.5mm) •Each channel 250mA Output 1:Voltage 3.3V / 2.5V Output 2:Voltage 3.3V / 2.5V / 1.8V / 1.5V •Power dissipation : MAX.900mW (At surface-mounted condition) •Low power-loss (Dropout voltage : MAX. 0.4V at IO=100mA) •Use of ceramic capacitor is possible as output smooth capacitor •RoHS directive compliant •CD-ROM drives •DVD-ROM drives •Digital Still Cameras
描述与应用2输出型  低功率损耗电压调节器;•紧凑的表面贴装封装(4.5×4.3×1.5毫米) •每个通道250MA    输出1:电压3.3V/2.5V    输出2:电压3.3V /2.5V /1.8V/1.5V •MAX.900mW功耗:    (在表面安装条件) •低功率损耗    (漏失电压:0.4V最大IO=100MA) •使用陶瓷电容作为输出    平滑电容器 •符合RoHS指令 •CD-ROM驱动器 •DVD-ROM驱动器 •数码相机
