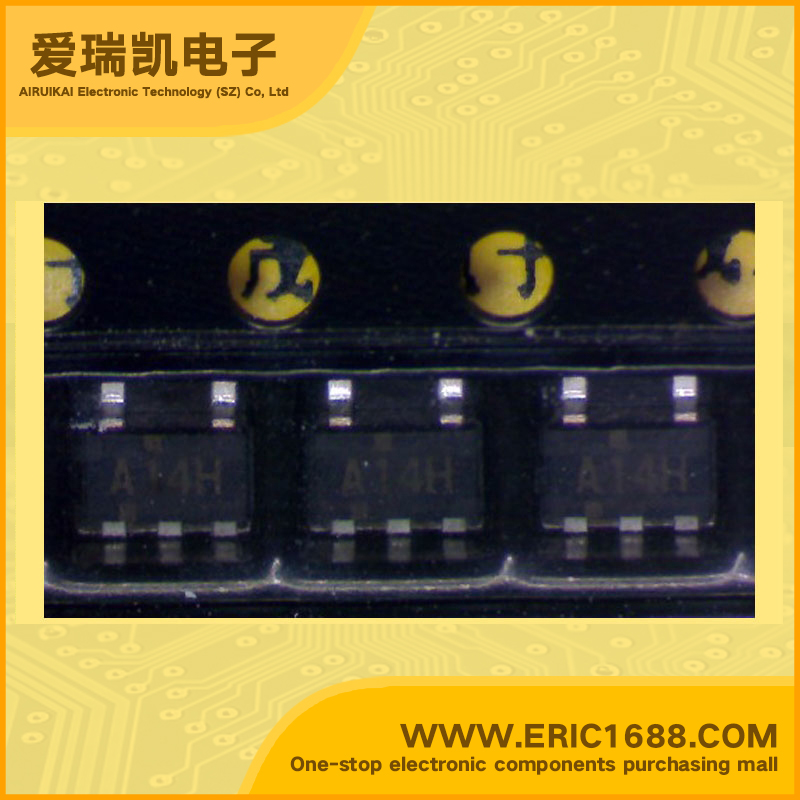

Integrated Circuit（IC） Inverting Schmitt trigger SN74AHC1G14HDBVR SOT-153/SOT23-5/SC-74A marking A14
| 逻辑类型 Logic Type | 反相施密特触发器 Inverting Schmitt trigger |
| 电路数 Number of Circuits | 1 |
| 输入数 Number of Inputs | 1 |
| 电源电压Vcc Voltage - Supply | 2v~5.5v |
| 静态电流Iq Current - Quiescent (Max) | 10uA |
| 输出高，低电平电流 Current - Output High, Low | -8mA,8mA |
| 低逻辑电平 Logic Level - Low | 0.1v~0.44v |
| 高逻辑电平 Logic Level - High | 1.9V~3.8V |
| 传播延迟时间@Vcc，CL Max Propagation Delay @ V, Max CL | 3.4nS @ 5V, 50pF |
| Description & Applications | SINGLE SCHMITT-TRIGGER INVERTER GATE ；Operating Range of 2 V to 5.5 V Switching speed typ3.1ns(@Vcc=3v,CL=15pf) All inputs VLH(MAX)=5.5v(@Vcc=0 to 5.5v) |
| 描述与应用 | 单一的施密特触发器逆变器门;2 V至5.5 V的工作范围 的开关速度typ3.1ns（@ VCC=3V，CL=15PF） 所有输入VLH（MAX）= 5.5V（VCC =0至5.5V） |
