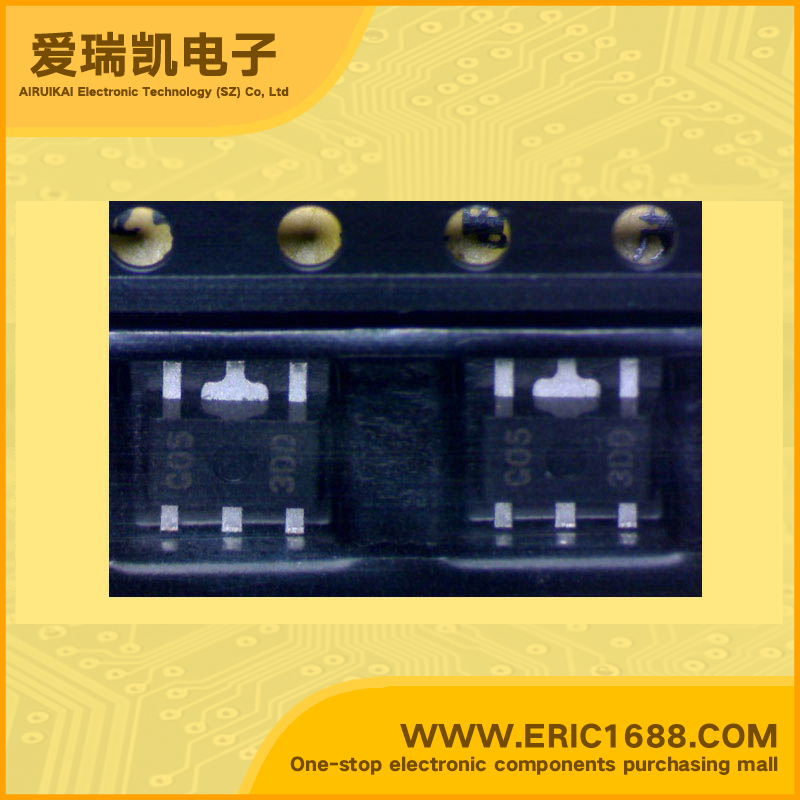

R1154H053B LDO Voltage Regulator 5V 200mV/0.2V SOT89-5 marking G05 Short-Circuit Protection Over-Temperature Protection

Hot selling goods

Product description
电路数量
Number of Regulators
1
输入电压VIN
Voltage - Input
24V
输出电压VOUT
Voltage - Output
5V
输出电流Io
Current - Output
150mA/0.15A
最大压降VDO
Voltage - Dropout
200mV/0.2V
带使能脚EN/CE(ON/OFF功能)
With Enable Pin
无 No
最大耗散功率Pd
Power dissipation
Description & Applications150mA Voltage Regulator (Wide Input Voltage Range) ;• Supply Current Typ. 5.0µA • Standby Current Typ. 0.1µA • Output Voltage Accuracy ±2.0% • Wide Output Voltage Range 2.5V to 12.0V(xxxB) adjustable in the range of 2.5V to VIN or 24.0V (001C) • Input Voltage 24.0V • Output Current Min. 140mA (VIN=VOUT+2.0V, 2.5V Output type) Min. 150mA (VIN=VOUT+2.0V, 3.0V Output type) • Built-in Peak Current Limit Circuit • Short Current Limit Circuit • Thermal Shutdown Circuit
描述与应用150mA输出电压稳压器(宽输入电压范围);•供电电流典型。 5.0μA •待机电流典型。 0.1μA •输出电压精度±2.0% •宽输出电压范围2.5V到12.0V(XXXB) 可调范围为2.5V到VIN或24.0V(001C) •输入电压24.0V •输出电流最小。 140毫安(VIN= VOUT+2.0 V,2.5V输出类型)                                                   最小。电流150mA(VIN= VOUT+2.0 V,3.0V输出类型) •内置峰值电流限制电路 •短路电流限制电路 •热关断电路
