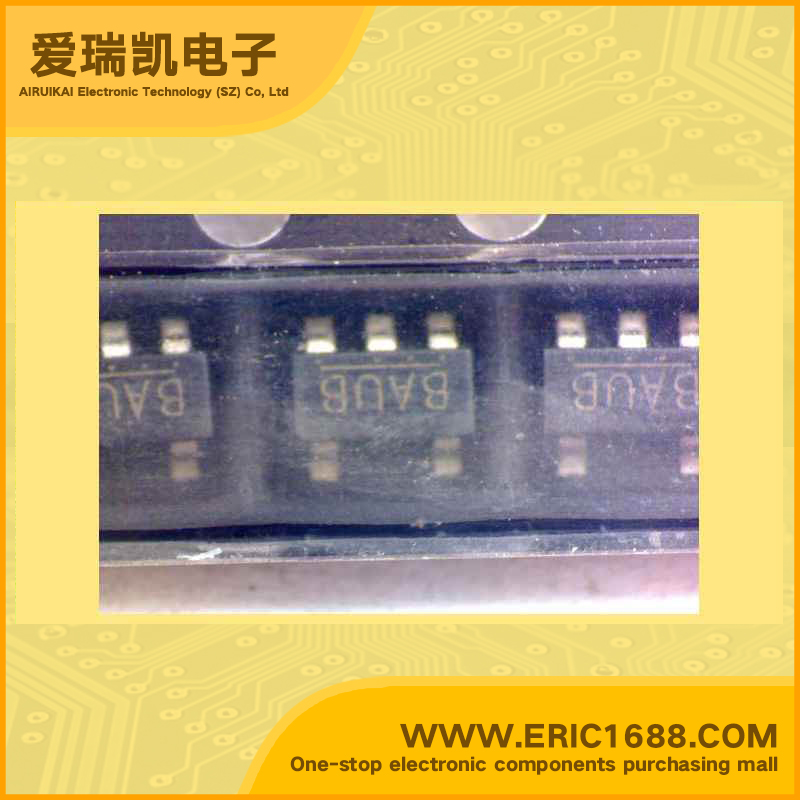

S-816A45AMC LDO Voltage Regulator 4.5V 100mV/0.1V With Enable Pin SOT-153/SOT23-5 marking BAU Short-Circuit Protection Over-Temperature Protection

Hot selling goods

Product description
电路数量
Number of Regulators
1
输入电压VIN
Voltage - Input
-0.3~18V
输出电压VOUT
Voltage - Output
4.5V
输出电流Io
Current - Output
100mA/0.1A
最大压降VDO
Voltage - Dropout
100mV/0.1V
带使能脚EN/CE(ON/OFF功能)
With Enable Pin
有 Yes
最大耗散功率Pd
Power dissipation
600mW/0.6W
Description & ApplicationsEXTERNAL TRANSISTOR TYPE CMOS VOLTAGE REGULATOR ;• Low current consumption • Operation mode: 30 μA typ., 40 μA max. • Shutdown mode: 1 μA max. • Input voltage range: 16 V max. •Output voltage accuracy: ± 2.0% •Output voltage range: Selectable between 2.5 V and 6.0 V in steps of 0.1 V. • With shutdown curcuit. • A built-in current source (10 μA) eliminates the need of a base-emitter resistance. • With overcurrent (base current) protection function.
描述与应用外部晶体管类型 CMOS电压稳压器;•低电流消耗 •操作模式:30μA(典型值),最大40μA。 •关断模式:最大1μA。 •输入电压范围:16 V最大。 •输出电压精度:±2.0% •可选输出电压范围:2.5 V和6.0 V的步长为0.1 V。 •关机回路。 •内置电流源(10μA)的基极 - 发射极电阻省去。 •具有过流(基极电流)保护功能。
