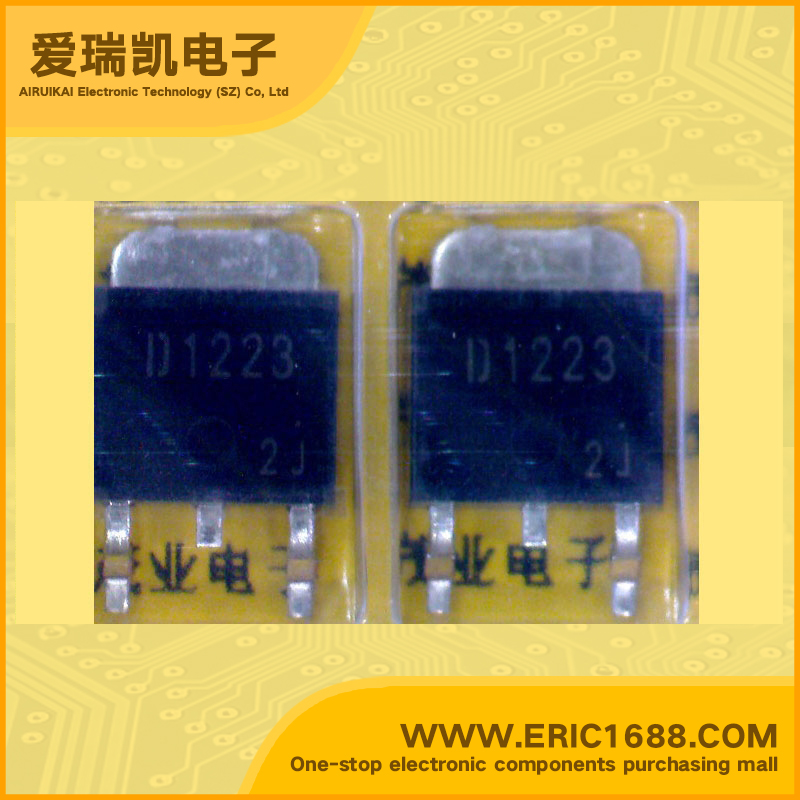

darlington transistor 2SD1223 NPN 4A 80V TO-252/PW-Mold markignd1223 switch power amplifier
| 集电极-基极反向击穿电压V(BR)CBO Collector-Base Voltage(VCBO) | 100V |
| 集电极-发射极反向击穿电压V(BR)CEO Collector-EmitterVoltage(VCEO) | 80V |
| 集电极连续输出电流IC Collector Current(IC) | 4A |
| 截止频率fT Transtion Frequency(fT) | |
| 直流电流增益hFE DC Current Gain(hFE) | 2000 @ 2V,1A |
| 管压降VCE（sat） Collector-Emitter SaturationVoltage | 1.5V |
| 耗散功率Pc Power Dissipation | 1W |
| Description & Applications | • Switching Applications • Hammer Drive, Pulse Motor Drive Applications • Power Amplifier Applications • High DC current gain: hFE = 2000 (min) (VCE = 2 V, IC = 1 A) • Low saturation voltage: VCE (sat) = 1.5 V (max) (IC = 3 A) • Complementary to 2SB908 |
| 描述与应用 | •开关应用 •电锤驱动，脉冲马达驱动应用 •功率放大器应用 •高直流电流增益：HFE=2000（最小值）（VCE= 2 V，IC= 1） •低饱和电压VCE（饱和）= 1.5 V（最大值）（IC= 3 A） •互补2SB908 |
