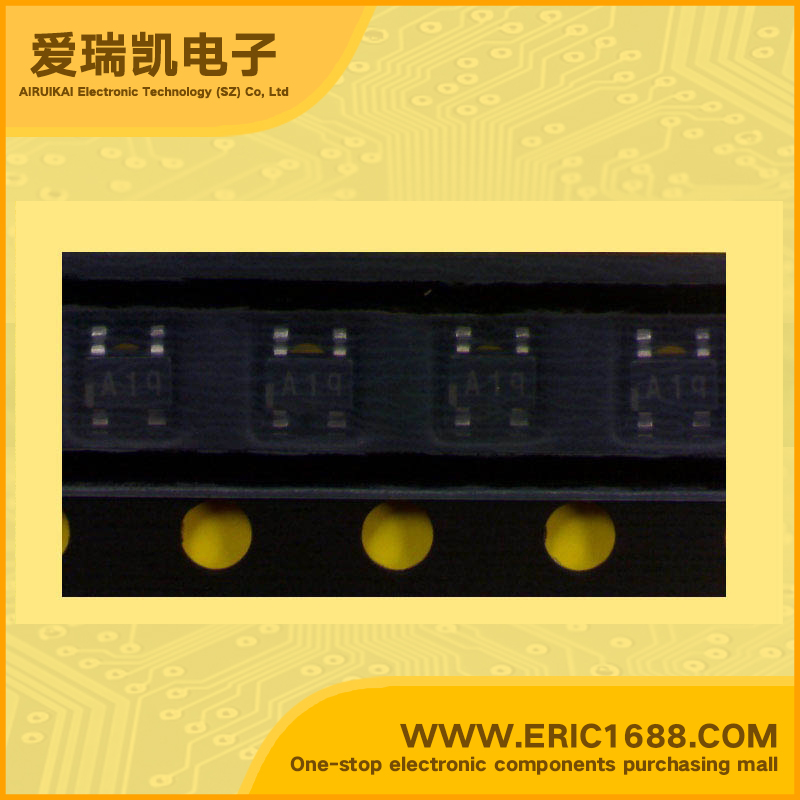

Temperature Sensor SM6610BH-G-EL SOT-343/SC-82AB marking a1

Hot selling goods

Product description
感应温度
Sensing Temperature
-20℃~80℃
输出类型
Output Type
2.4V~5.5V
电源电压
Voltage - Supply
±0.5°C
精度
Accuracy
CMOS Monolithic Analog Output Temperature Sensor IC The SM6610 series are high-accuracy analog output temperature sensor ICs in ultra-small packages. They are implemented using CMOS for low-voltage operation and low-current consumption. They feature a powerdown function whereby the device operates intermittently to further reduce current consumption. FEATURES  High linearity: ± 0.5% typ. (Ta = – 20 to 80°C)  Operating temperature range: – 40 to 100°C (VDD ≥ 2.7V)  Maximum output current load: ± 250µA  Output reference: VSS  Low current consumption: 5.5µA typ. (Ta = 25°C)  Low stand-by current: 0.5µA max.  Very small plastic package: SC82AB  Power down function  Molybdenum-gate CMOS Process
Description & ApplicationsCMOS单片模拟输出温度传感器IC SM6610系列是高精度模拟输出温度传感器超小型封装的IC。它们的实现方式采用CMOS低电压工作和低电流消耗。他们配备了省电功能,使设备工作间歇,以进一步降低电流消耗。 特点 高线性度:±0.5%(典型值)。 (TA= - 20〜80°C) 工作温度范围: - 40至100°C(VDD ≥2.7V) 最大输出电流负载:±250μA 输出参考:VSS 低消耗电流:5.5μA(典型值)。 (大=25°C) 低待机电流:0.5μA最大。
描述与应用
