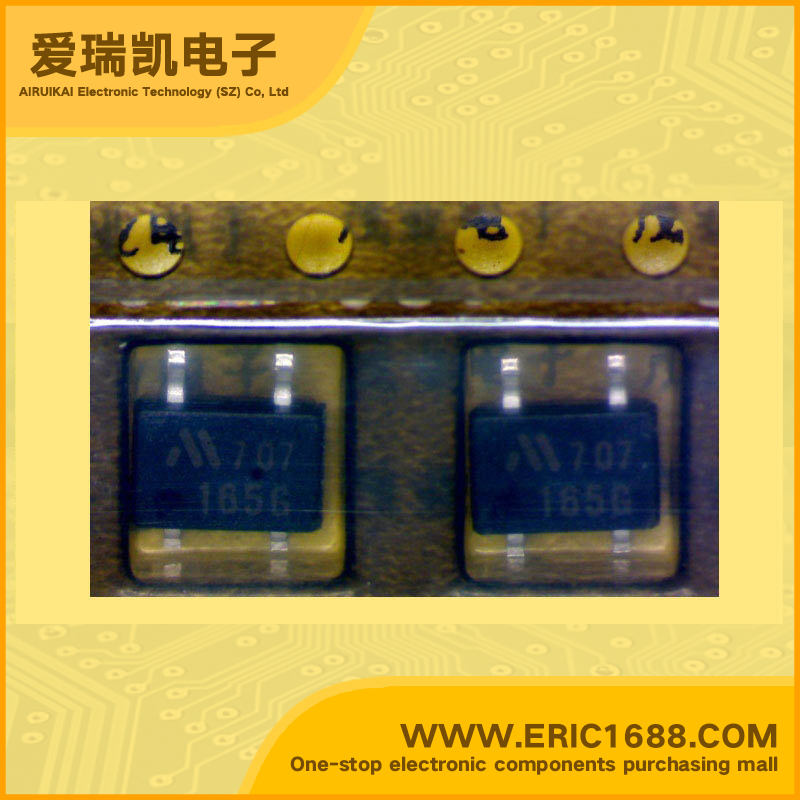

MM1165GMR LDO Voltage Regulator 5V 200mV/0.2V With Enable Pin MMP-4A marking 165G Short-Circuit Protection Over-Temperature Protection

Hot selling goods

Product description
电路数量
Number of Regulators
1
输入电压VIN
Voltage - Input
-0.3~10V
输出电压VOUT
Voltage - Output
5V
输出电流Io
Current - Output
40mA
最大压降VDO
Voltage - Dropout
200mV/0.2V
带使能脚EN/CE(ON/OFF功能)
With Enable Pin
有 Yes
最大耗散功率Pd
Power dissipation
200mW/0.2W
Description & ApplicationsUltra-Low Power Consumption Low-Saturation Three-Pin Regulators with On/Off Pin ;•Input/output voltage difference 0.2V typ. (IO=40mA) •No-load input current 13µA typ. •Maximum reactive current at low input voltages 15µA typ. (no-load) •Maximum output current 100mA max. •Temperature coefficient of output voltage ±0.01%/°C typ.
描述与应用超低功耗低饱和度的三针稳压器ON / OFF引脚;•输入/输出电压差0.2V(典型值)(IO=40毫安) •无负载输入电流13μA(典型值) 最大无功电流15μA(典型值)低输入电压(空载) •最大输出电流最大100mA。 输出电压温度系数±0.01%/°C典型值
