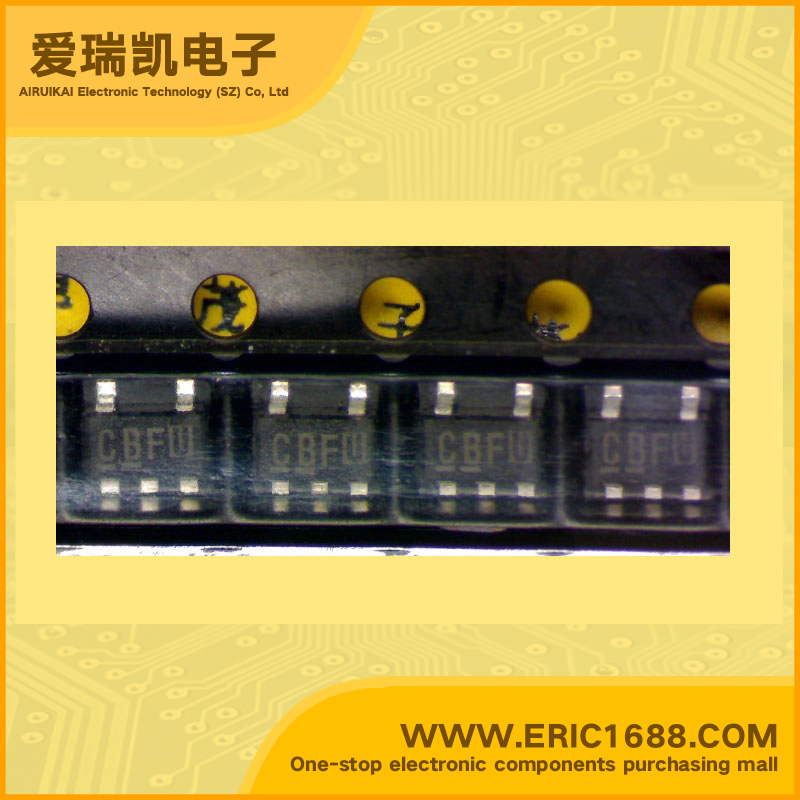

XC6365C155MR DC/DC Step-Down Converting PMIC 1.5V SOT-153/SOT-25/SOT23-5 marking CBF Step-Down Converter

Hot selling goods

Product description
控制方式
MODE
PWM
输入电压VIN
Input Voltage
2.2~10V
输出电压VOUT
Output Voltage
1.5V
输出电流IOUT
Output Current
1A
震荡频率FOSC
Oscillation Frequency
500khz
内置FET
Built-in FET
PMOS
Description & ApplicationsPWM Controlled, PWM/PFM Switchable Step-Down DC/DC Converters • Input Voltage Range : 2.2V ~ 10V (VOUT type) • Output Voltage Range : 1.5V ~ 6.0V programmable in 0.1V increments (±2.5%) • Oscillation Frequency : 300kHz (±15%) : Custom products for 180, 500kHz • Output Current : More than 1.0A (VIN=5.0V, VOUT=3.0V) • High Efficiency : 92% (TYP.) • Stand-by Capability : ISTB=0.5μA (MAX.) • Soft-start time set-up externally type possible • Internally set-up output voltage type possible (VOUT) • Externally set-up output voltage type possible (FB) • Maximum Duty Ratio : 100% • Package : SOT-25, USP-6C
描述与应用PWM控制,PWM/ PFM切换降压DC/ DC转换器•输入电压范围:2.2V〜10V(VOUT型) •输出电压范围:1.5V〜6.0V的可编程增量0.1V(±2.5%) •振荡频率为300kHz(±15%):180,500kHz的定制产品 •输出电流:1.0A以上(VIN= 5.0V,VOUT= 3.0V) •高效率:92%(典型值) •待机能力:ISTB=0.5μA(最大值) •软启动时间设定外部输入可能 •内部设置输出电压型(VOUT) •外部设定输出电压型(FB) •最大占空比:100% •封装形式:SOT-25,USP-6C
