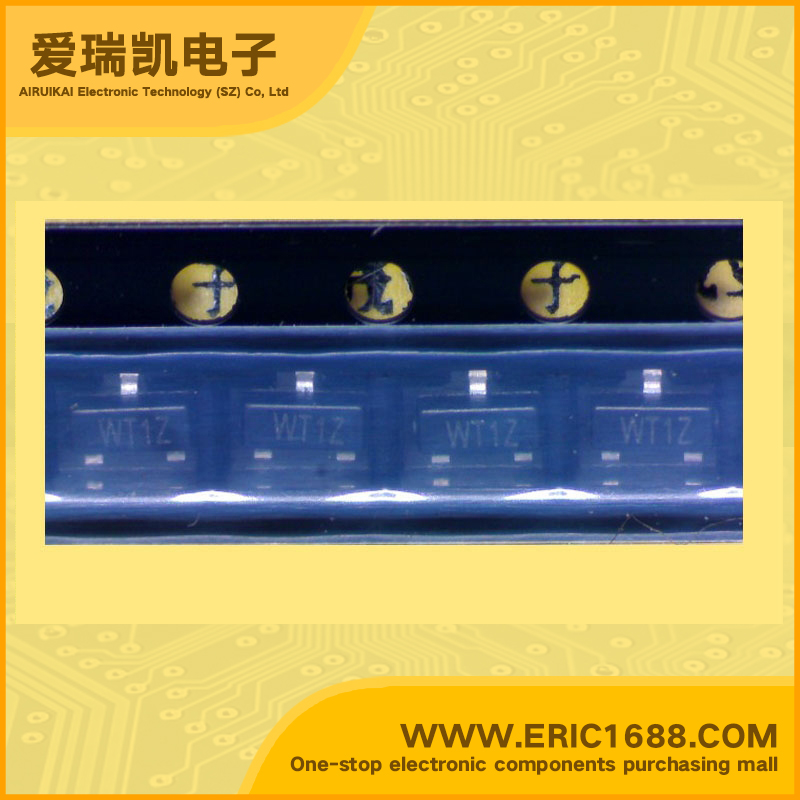

WPM2301-3/TR MOSFET P-Channel -20V -2A 0.055ohm SOT-23 marking WT1 ultra high-speed switch low on-resistance

Hot selling goods

Product description
最大源漏极电压Vds
Drain-Source Voltage		 -20V
最大栅源极电压Vgs(±)
Gate-Source Voltage		 8V
最大漏极电流Id
Drain Current		 -2A
源漏极导通电阻Rds
Drain-Source On-State
Resistance		 0.055Ω @-3A,-10V
开启电压Vgs（th）
Gate-Source Threshold Voltage		 -1.0--2.5V
耗散功率Pd
Power Dissipation		 2.5W
Description & Applications Low on-state resistance : Rds (on) = 0.065Ω ( Vgs = -10V ) Rds (on) = 0.11Ω ( Vgs = -4.5V ) Ultra high-speed switching Operational Voltage : -4.5V High density mounting : SOP - 8
描述与应用 低通态电阻：RDS（ON）=0.065Ω（VGS=-10V） RDS（ON）=0.11Ω（VGS=-4.5V） 超高速开关 工作电压：4.5V 高密度安装：SOP - 8
