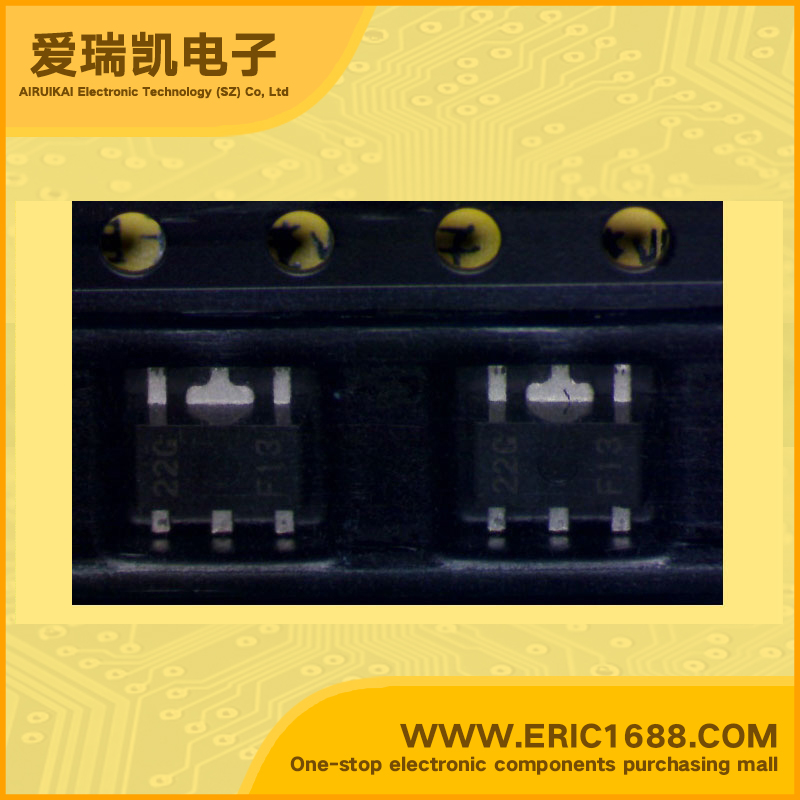

NJM2801U3328 LDO Voltage Regulator 3.3V 100mV/0.1V SOT89-5 marking 22G Short-Circuit Protection Over-Temperature Protection
| 电路数量 Number of Regulators | 1 |
| 输入电压VIN Voltage - Input | 14V |
| 输出电压VOUT Voltage - Output | 3.3V |
| 输出电流Io Current - Output | 60mA |
| 最大压降VDO Voltage - Dropout | 100mV/0.1V |
| 带使能脚EN/CE(ON/OFF功能) With Enable Pin | 无 No |
| 最大耗散功率Pd Power dissipation | 350mW/0.35W |
| Description & Applications | Low Dropout Voltage Regulator with Reset ;•Output Voltage Accuracy Vo = ±2.2% • Reset Voltage Accuracy Vreset = ±2.0% • Reset Hold Time td = 10mS±2.5mS • Quiescent Current IQ=300µA (max.) • Open Collector Output • Bipolar Technology • Input Voltage Monitor type • Protection Circuit |
| 描述与应用 | 低压差稳压器复位;•输出电压精度VO =±2.2％ •复位电压精度VRESET=±2.0％ •复位保持时间td=10mS的±2.5MS •静态电流IQ=300μA（最大值） •集电极开路输出 •双极技术 •输入电压监视器类型 •保护电路 |
