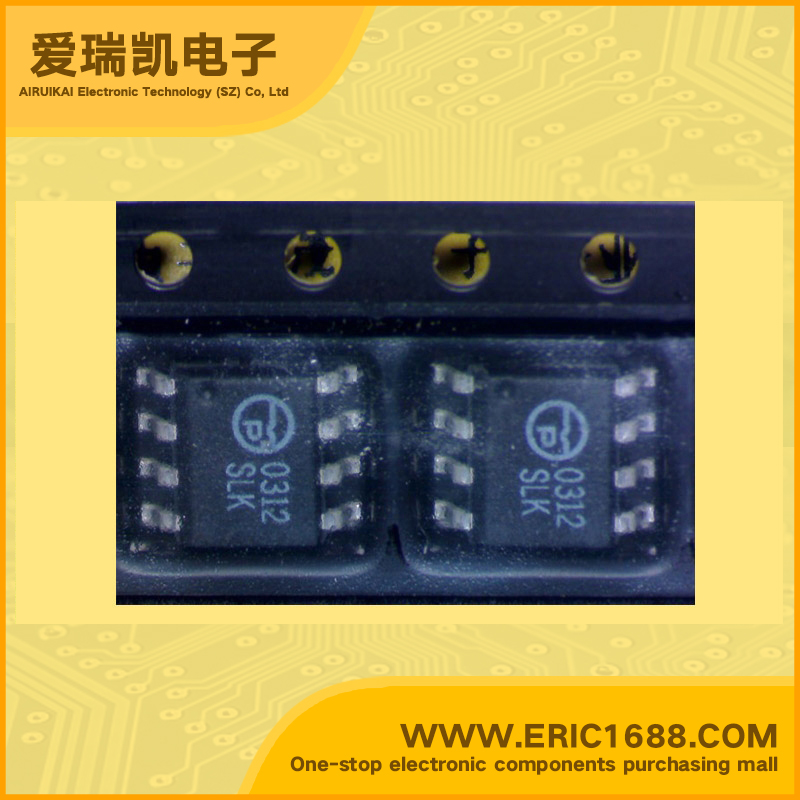

SMDA15LCC-T7 TVS/ESD 15V SO8 marking SLK
| 极性 Polarization | 双向 Bidirectional |
| 反向关断电压/工作电压VRWM Reverse Standoff Voltage | 15V |
| 反向击穿电压VBR Breakdown Voltage | 16.7V |
| 峰值脉冲耗散功率PPPM Peak Pulse Power Dissipation | 500W |
| 峰值脉冲电流IPPm Peak Forward Surge Current | |
| 额定耗散功率Pd Power dissipation | |
| Description & Applications | Features • LOW CAPACITANCE TVS ARRAY • 500 Watts Peak Pulse Power per Line (tp=8/20µs) • Unidirectional & Bidirectional Configurations • Available in Multiple Voltage Types Ranging From 3V to 24V • Protects Up to Four (4) Lines • ESD Protection > 40 kilovolts • LOW CAPACITANCE: 15pF • RoHS Compliant in Lead-Free Versions Applications • SCSI & IDE Interfaces • Parallel & Serial Port Protection (RS-232) • Ethernet - 10/100 Base T • Test & Measurement Equipment • Industrial Control: Low Voltage Sensors |
| 描述与应用 | 特点 •低电容TVS阵列 •500瓦峰值脉冲电源线（TP =8/20μS） •单向及双向配置 •可在多个电压类型从3V到24V •保护多达四（4）线 •ESD保护>40千伏 •低电容：15PF •符合限制有害物质指令（RoHS）规范要求的无铅版本 应用 •SCSI和IDE接口 •并行与串行端口保护（RS-232） •以太网 - 10/100？Ť •测试与测量设备 •工业控制：低电压传感器 |
