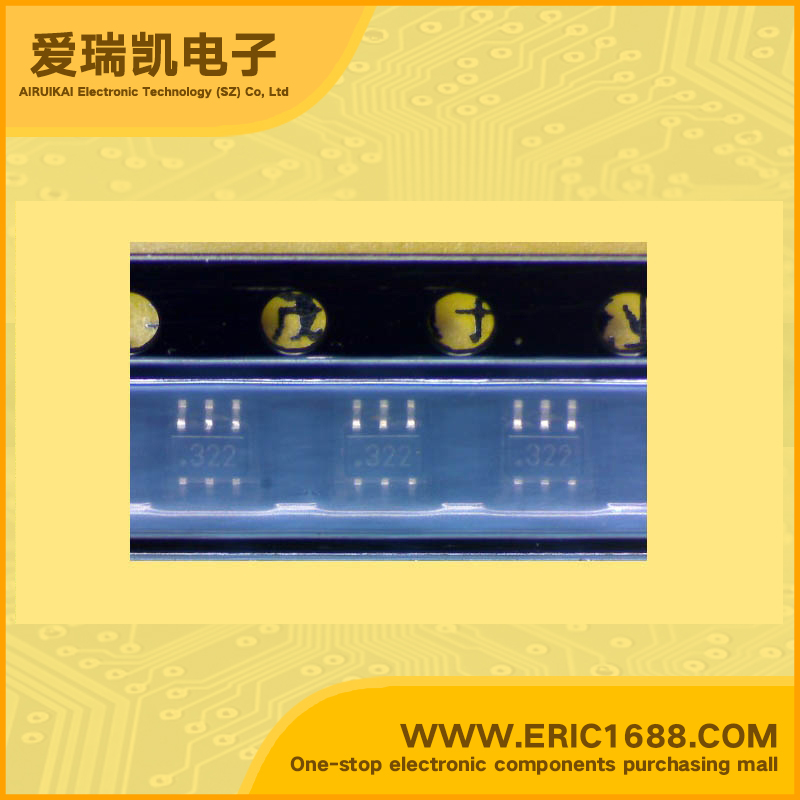

STF203-22.TC TVS/ESD 5.25V 0.1W/100mW SOT-363/SC70-6 marking 322

Hot selling goods

Product description
极性
Polarization
单向 Unidirectional
反向关断电压/工作电压VRWM
Reverse Standoff Voltage
5.25V
反向击穿电压VBR
Breakdown Voltage
6V
峰值脉冲耗散功率PPPM
Peak Pulse Power Dissipation
峰值脉冲电流IPPm
Peak Forward Surge Current
额定耗散功率Pd
Power dissipation
0.1W/100mW
Description & ApplicationsFeatures •USB Upstream Port Filter and TVS For EMI Filtering and ESD Protection •Bidirectional EMI/RFI filtering and line termination with integrated ESD protection •ESD protection for USB power and data lines(D+ and D-) to IEC 61000-4-2 (ESD) ±15kV (air), ±8kV (contact) IEC 61000-4-4 (EFT) 40A (5/50ns) •Filtering and termination for one USB port •Series resistors: 15Ω, 22Ω, and 33Ω •Low TVS operating voltage (5.25V) •Low leakage current •Small SC70-6L package •Solid-state technology Applications •USB Ports •Cellular Handsets •PDAs •Pagers •Digital Cameras •PCPeripherals •MP3 Players
描述与应用特点 •USB上行端口过滤和TVS对于EMI滤波和ESD保护 •双向EMI / RFI滤波和线路终端,集成ESD保护 •ESD保护USB电源及数据线(D+和D-) IEC61000-4-2(ESD)±15kV(空气),±8kV(接触) IEC61000-4-4(EFT)40A(5/50ns) •一个USB端口的过滤和终止 •串联电阻:15Ω,22Ω,33Ω •低TVS工作电压(5.25V) •低漏电流 •小SC70-6L封装 •固态技术 应用 •USB端口 •蜂窝手机 •掌上电脑? •寻呼机 •数码相机 •PC外设 •MP3播放器
