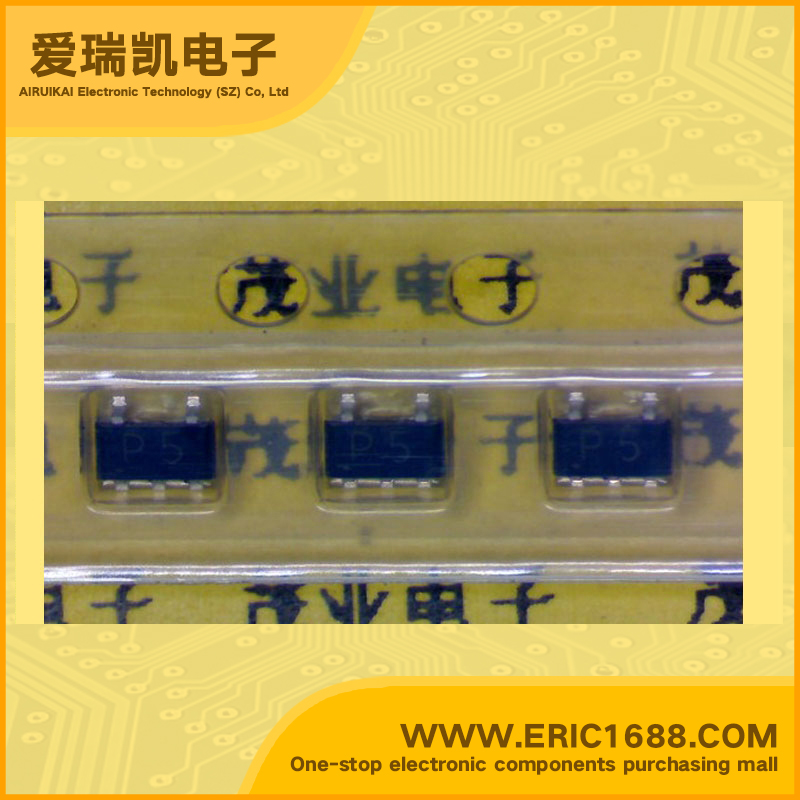

RT2P14M PNP+PNP Complex Bipolar Digital Transistor -50V -100mA R1=10kΩ, R2=47kΩ 150mW/0.15W SOT-353/SC-88A/SC70-5 marking R5 switching inverting interface driver circuit

Model：RT2P14M
Mark / screen / code / typing：R5
Manufacturer：
Date Code：08NOPB 08+ROHS
Package：SOT-353/SC-88A/SC70-5
Standard Package：3000
Min Order：10

Hot selling goods

Product description

V(BR) CBO Collector-Base Voltage	-50V
V(BR) CEO Collector-Emitter Voltage	-50V
Collector Current(IC)	-100MA
Input Resistance(R1)	10KΩ
Base-Emitter Resistance(R2)	47KΩ
Base-Emitter Input Resistance Ratio (R1/R2)	0.21
DC Current Gain(hFE)
Transtion Frequency(fT)
Power Dissipation （Pd）	0.15W
Description & Applications
Technical Documentation Download	Read Online
