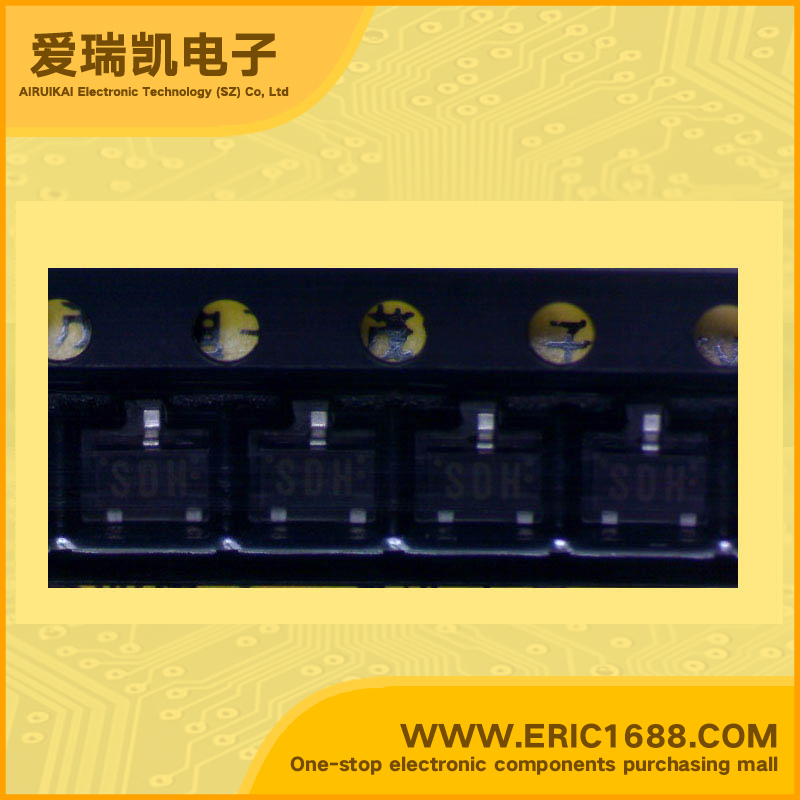

MN13821S-H Voltage Supervisor 2.6V SOT-23 marking SDH CMOS LSI voltage detecting

Hot selling goods

Product description
受检测电压数
Number of Voltages Monitored
1
检测电压/复位阈值电压VDET
Voltage - Threshold
2.6V
工作电压VIN
Voltage - Supply
7V
高/低有效复位
Reset
低 Active Low
输出类型
Output Type
open drain
看门狗
Watchdog
无 No
功耗Pd
Power Dissipation
320mW/0.32W
Description & Applications•CMOS LSIs for Voltage Detection •Three-pin element requiring no adjustment Wide selection of detection ranks (17 ranks between 2.0 and 4.9 volts) •Highly precise detection voltage • Detection voltage with hysteresis characteristic ∆VD = 50 mV for ranks C to K ∆VD = 100 mV for ranks L to U •Low current consumption: IDD = 1µA (typ.) for VDD= 5 V •Wide selection of output types: CMOS output, Nchannel open drain output, and •inverted CMOS output •Wide selection of package types: M, TO-92, and a mini type for surface mounting
描述与应用•CMOS LSI的电压检测 •三针元素,无需调整  检测行列(17级之间的选择范围广 2.0和4.9伏) •高度精确的检测电压 •检测电压迟滞特性ΔVD到K=50 mV的行列Ç ΔVD以取得行列L=100毫伏到U •低功耗:IDD= VDD = 5 V1μA(典型值) •宽选择输出类型:CMOS输出,N沟道开漏输出,•倒置CMOS输出  •宽选择封装类型:M,TO-92,和一个迷你型表面贴装
