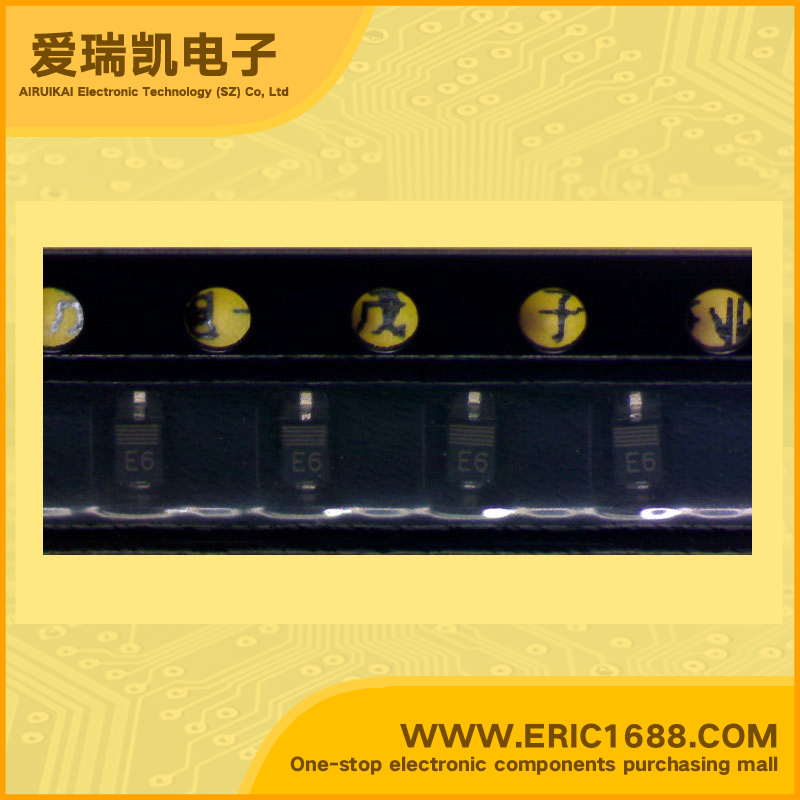

PESD5V0S1BA TVS/ESD 5V 12A SOD323/SC-76/0805-5V marking E6

Hot selling goods

Product description
极性
Polarization
双向 Bidirectional
反向关断电压/工作电压VRWM
Reverse Standoff Voltage
5V
反向击穿电压VBR
Breakdown Voltage
5.5V
峰值脉冲耗散功率PPPM
Peak Pulse Power Dissipation
130W
峰值脉冲电流IPPm
Peak Forward Surge Current
12A
额定耗散功率Pd
Power dissipation
Description & ApplicationsFeatures • Low capacitance bidirectional ESD protection diodes • Bidirectional ESD protection of one line • ESD protection > 30 kV • Max. peak pulse power: PPP = 130 W • IEC 61000-4-2, level 4 (ESD) • Low clamping voltage: V(CL)R = 14 V • IEC 61000-4-5 (surge); IPP = 12 A • Ultra low leakage current: IRM = 5 nA • Ultra small SMD plastic packages
描述与应用特性 •低电容双向ESD保护二极管 •一条线双向ESD保护 •ESD保护> 30千伏 •最大峰值脉冲功率:Ppp=130 W •IEC61000-4-2第4级(ESD) •低钳位电压:V(CL)R= 14 V •IEC61000-4-5(浪涌),Ipp=12 A •超低漏电流:IRM= 5 nA •超小型塑料SMD封装
