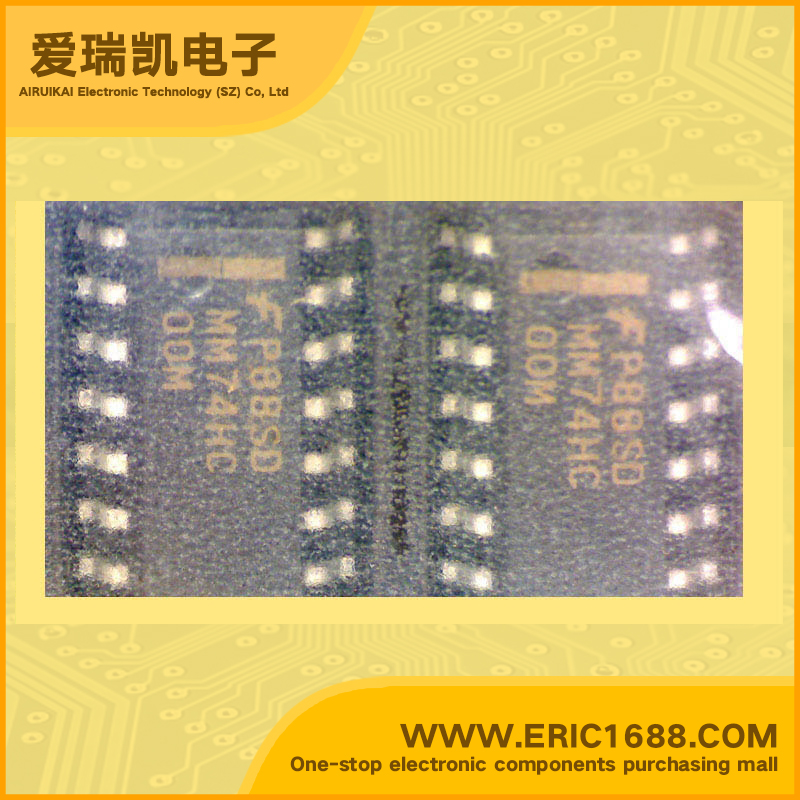

Integrated Circuit(IC) NAND gate MM74HC00M SOIC14 marking MM74HC00M

Hot selling goods

Product description
逻辑类型
Logic Type
与非门 NAND Gate
电路数
Number of Circuits
4
输入数
Number of Inputs
2
电源电压Vcc
Voltage - Supply
2V~6V
静态电流Iq
Current - Quiescent (Max)
2uA
输出高,低电平电流
Current - Output High, Low
-5.2mA,5.2mA
低逻辑电平
Logic Level - Low
0.5V~1.8V
高逻辑电平
Logic Level - High
1.5V~4.2V
传播延迟时间@Vcc,CL
Max Propagation Delay @ V, Max CL
8ns @ 6V,51pF
Description & ApplicationsQuad 2-Input NAND Gate ;Features Typical propagation delay: 8 ns Wide power supply range: 2–6V Low quiescent current: 20 µA maximum (74HC Series) Low input current: 1 µA maximum Fanout of 10 LS-TTL loads
描述与应用四路2输入与非门;特性 典型的传输延迟为8 ns 宽电源电压范围:2-6V 低静态电流:20μA最大(74HC系列) 低输入电流:最大1μA 扇出的10个LS-TTL负载
