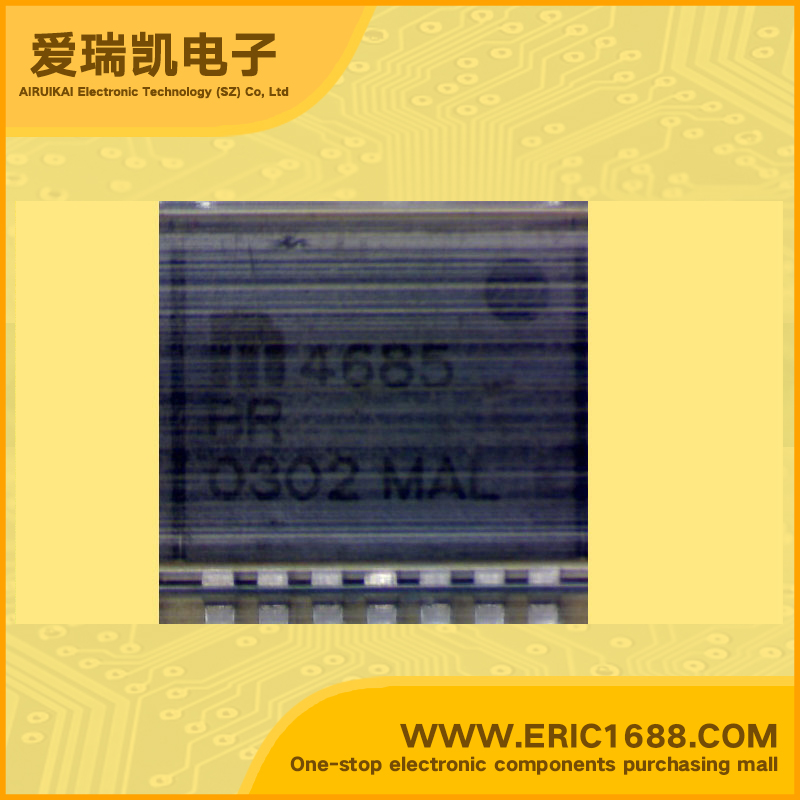

MIC4685BRTR DC/DC Step-Down Converting PMIC 1.23~33V S-PAK-07L marking 4685 Step-Down Converter

Model：MIC4685BR
Mark / screen / code / typing：4685
Manufacturer：
Date Code：03+ 03+
Package：S-PAK-07L
Standard Package：960
Min Order：10

Hot selling goods

Product description

控制方式 MODE	PWM
输入电压VIN Input Voltage	4~30V
输出电压VOUT Output Voltage	1.23~33V
输出电流IOUT Output Current	3A
震荡频率FOSC Oscillation Frequency	200KHZ
内置FET Built-in FET
Description & Applications	3A-Peak super switching Buck regulator • Fixed 200kHz PWM operation •all surface mount solution •output adjustable down to 1.235V
描述与应用	3A峰值超级开关降压稳压器 •固定200kHz的PWM操作 •所有表面贴装解决方案 •输出可调至1.235V
