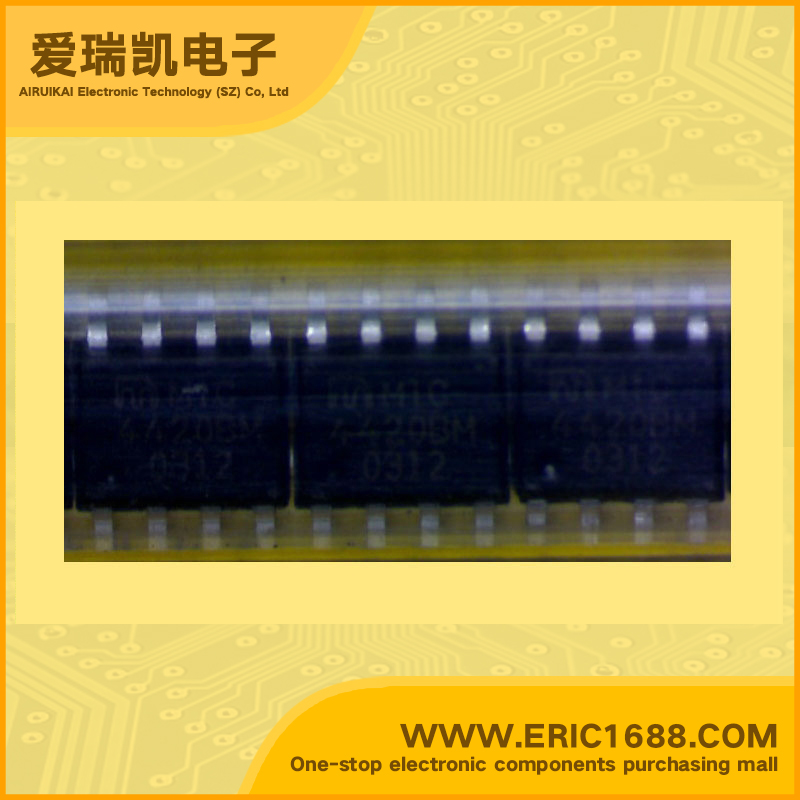

MIC4420BM MOSFET/Bridge Driver PMIC non-inverting 4.5V ~ 18V 6A SOIC-08L marking MIC4420BM Switch Mode Power Supplies

Hot selling goods

Product description
驱动器类型(配置/类型)
Type/Configuration
低端 Low-Side
驱动器数量(配置数)
Number of Configurations
1
输入类型
Input Type
非反相 Non-Inverting
导通电阻
On-State Resistance
峰值输出电流
Current - Peak
6A
输出端数量
Number of Outputs
1
电源电压
Voltage - Supply
4.5V ~ 18V
Description & ApplicationsFEATURES • 6A-Peak Low-Side MOSFET Driver Bipolar/CMOS/DMOS Process • CMOS Construction • Latch-Up Protected: Will Withstand >500mA Reverse Output Current • Logic Input Withstands Negative Swing of Up to 5V • Matched Rise and Fall Times ................................25ns • High Peak Output Current ............................... 6A Peak • Wide Operating Range ...............................4.5V to 18V • High Capacitive Load Drive ............................10,000pF • Low Delay Time .............................................. 55ns Typ • Logic High Input for Any Voltage From 2.4V to VS • Low Equivalent Input Capacitance (typ) ..................6pF • Low Supply Current ...............450µA With Logic 1 Input • Low Output Impedance ......................................... 2.5Ω • Output Voltage Swing Within 25mV of Ground or VS Applications • Switch Mode Power Supplies • Motor Controls • Pulse Transformer Driver • Class-D Switching Amplifiers
描述与应用特点 •6A峰值低侧MOSFET驱动器双极/ CMOS/ DMOS工艺 •CMOS建设 •闭锁保护:可承受500毫安  反向输出电流 •逻辑输入可承受高达5V的负摆幅 •匹配的上升和下降时间................................为25ns •高峰值输出电流............................... 6A峰值 •宽工作电压范围...............................4.5V至18V •高容性负载驱动............................10,000 pF的 •低的延迟时间.............................................. 55ns典型 •逻辑高输入任何电压从2.4V到VS •低等效输入电容(典型值)..................6PF •低电源电流...............450μA与逻辑1输入 •低输出阻抗......................................... 2.5Ω •输出电压摆幅内25mV的地面或VS 应用 •开关电源 •电机控制 •脉冲变压器驱动器 •D类开关放大器
