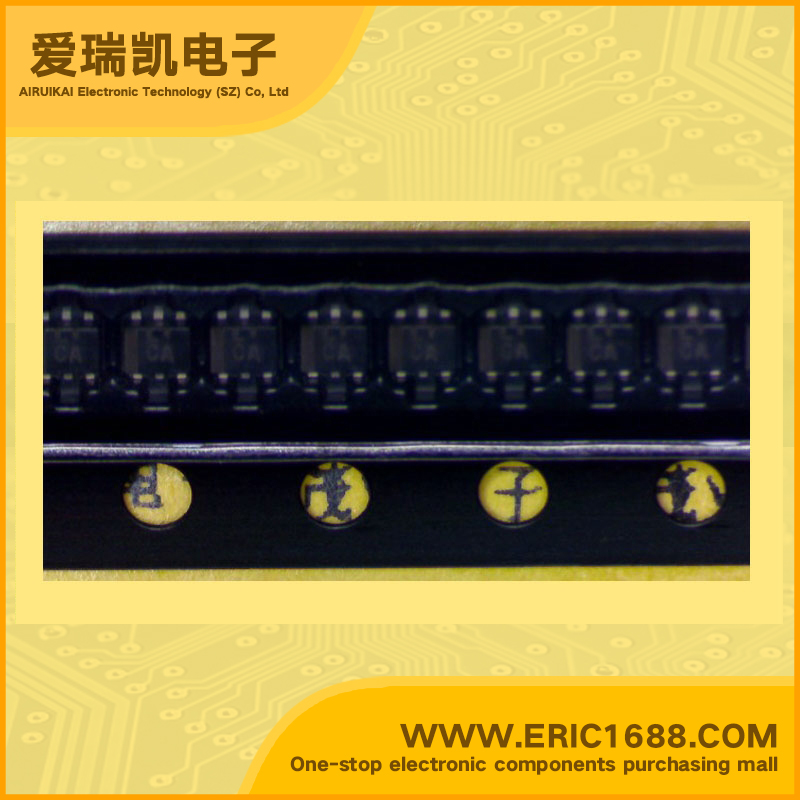

UP0431400L NPN+PNP Complex Bipolar Transistor 50V/-50V 100mA/-100mA 80 SOT-563 marking CA switch and digital circuit application

Model：UP0431400L
Mark / screen / code / typing：CA
Manufacturer：
Date Code：09NOPB
Package：SOT-563
Standard Package：8000
Min Order：100

Hot selling goods

Product description

Q1 Collector-Base Voltage(VCBO)	50V
Q1Collector-Emitter Voltage(VCEO)	50V
Q1 Collector Current(IC)	100MA/0.1A
Q2 Collector-Base Voltage(VCBO)	-50V
Q2Collector-Emitter Voltage(VCEO)	-50V
Q2Collector Current(IC)	-100MA/-0.1A
Q1 Input Resistance(R1)	10 KΩ
Q1Base-Emitter Resistance(R2)	47 KΩ
Q1(R1/R2) Q1 Resistance Ratio	0.21
Q2 Input Resistance(R1)	10KΩ
Q2Base-Emitter Resistance(R2)	47 KΩ
Q2(R1/R2) Q2 Resistance Ratio	0.21
DC Current Gain(hFE) Q1/Q2	80/80
Transtion Frequency(fT) Q1/Q2	150MHZ/80MHZ
Power Dissipation	125MW/0.125W
Description & Applications	For switching/digital circuits * Features • Two elements incorporated into one package (Transistors with built-in resistor) • Reduction of the mounting area and assembly cost by one half * Basic Part Number • UNR2214 + UNR2114
