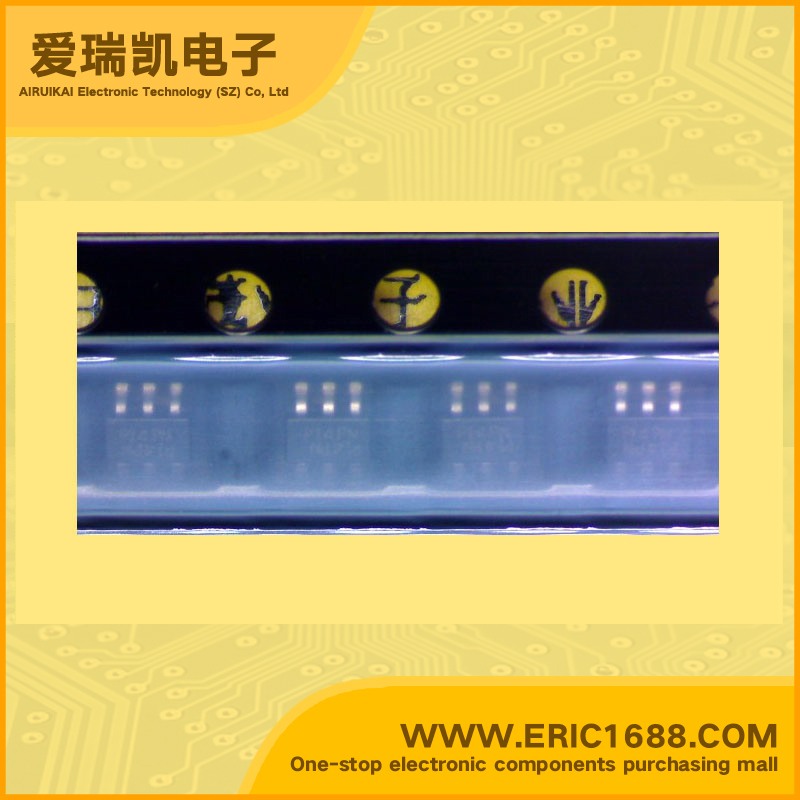

DDA114YU-7 PNP+PNP Complex Bipolar Digital Transistor -50V -0.1A HEF=100~600 200mW/0.2W SOT-363/SC-88/SC70-6 marking P14PN switching inverting interface driver circuit

Model：DDA114YU-7
Mark / screen / code / typing：P14PN
Manufacturer：
Date Code：05+
Package：SOT-363/SC-88/SC70-6
Standard Package：3000
Min Order：10

Hot selling goods

Product description

V(BR) CBO Collector-Base Voltage	-50v
V(BR) CEO Collector-Emitter Voltage	-50v
Collector Current(IC)	-70ma
Input Resistance(R1)	10KΩ
Base-Emitter Resistance(R2)	47KΩ
Base-Emitter Input Resistance Ratio (R1/R2)	0.21
DC Current Gain(hFE)	100~600
Transtion Frequency(fT)	250MHZ
Power Dissipation （Pd）	0.2W
Description & Applications	PNP PRE-BIASED SMALL SIGNAL SOT-363 DUAL SURFACE MOUNT TRANSISTOR Epitaxial Planar Die Construction Built-In Biasing Resistors
Technical Documentation Download	Read Online
