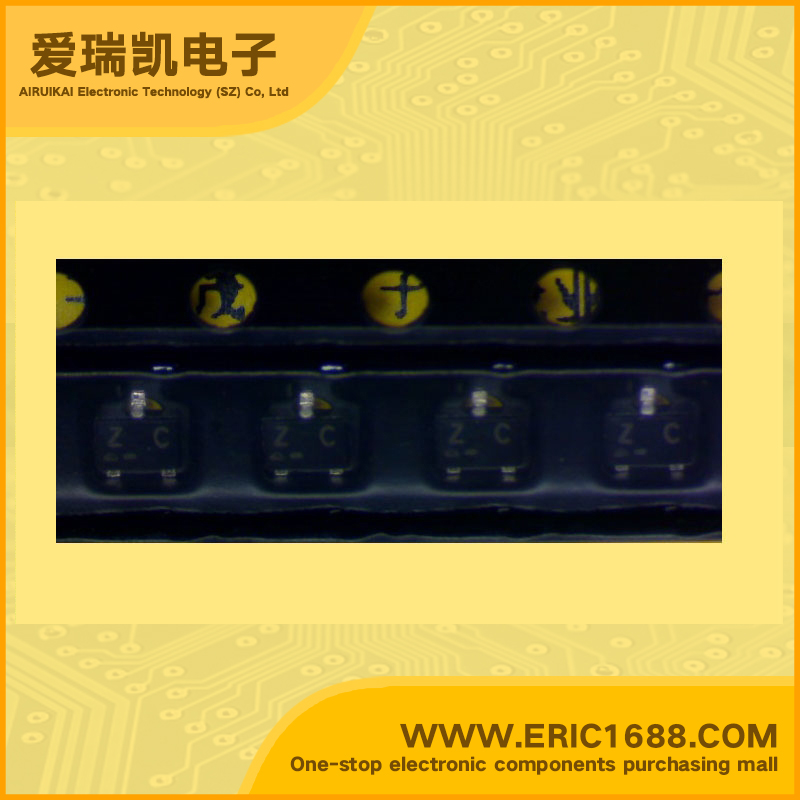

15GN03M-TL-E NPN Transistors(BJT) 20V 70mA 1.5GHz 100~180 SOT-323/SC-70/MCP marking ZC high-frequency amplifier high-frequency switch

Hot selling goods

Product description
集电极-基极反向击穿电压V(BR)CBO
Collector-Base Voltage(VCBO)
20V
集电极-发射极反向击穿电压V(BR)CEO
Collector-Emitter Voltage(VCEO)
10V
集电极连续输出电流IC
Collector Current(IC)
70mA
截止频率fT
Transtion Frequency(fT)
1.5GHz
直流电流增益hFE
DC Current Gain(hFE)
100~180
管压降VCE(sat)
Collector-Emitter Saturation Voltage
耗散功率Pc
Power Dissipation
400mW/0.4W
Description & ApplicationsNPN Epitaxial Planar Silicon Transistor VHF High-frequency Amplifier Applications Applications • VHF, RF, MIXER, OSC, IF amplifier. Features • High cut-off frequency • High gain • Ultrasmall package permitting applied sets to be small and slim.
描述与应用NPN平面外延硅晶体管 VHF高频放大器的应用 应用 •甚高频,射频,混频器,振荡器,IF放大器。 特点 •高截止频率 •高增益 •超小封装允许设置小而纤细。
