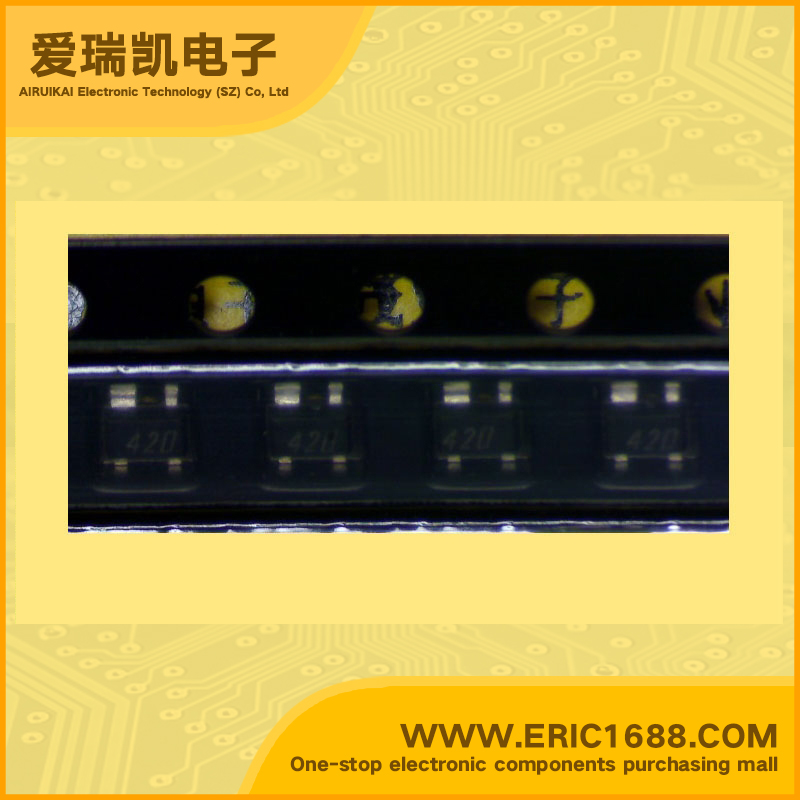

RF amplifier MGA-52543-TR1G SOT-343 marking 420
| 频率 Frequency | 400MHz~6GHz |
| P1dB | 17.4dBm |
| 增益 Gain | 13dB~15.5dB |
| 噪声系数 Noise Figure | 1.9dB~2.3dB |
| RF 类型 RF Type | Cellular,PCS,WLL, WLAN |
| 电源电压 Voltage - Supply | 4.5V~5.5V |
| 电源电流 Current - Supply | 45mA~65mA |
| 测试频率 Test Frequency | 1.9GHz |
| Description & Applications | FEATURES • Lead-free Option Available • Operating frequency: 0.4 GHz ~6.0 GHz • Minimum noise figure: 1.61 dB at1.9 GHz • Associated gain : 15 dB at 1.9 GHz • 1.9 GHz performance tuned for VSWR < 2:1Noise figure: 1.9 dB Gain: 14 dB P1dB: +17.5 dBm Input IP3: +17.5 dBm • Single supply 5.0 V operation Applications • Cellular/PCS base station radiocard LNA • High dynamic range amplifier for base stations, WLL, WLAN, and other applications |
| 描述与应用 | 特点 •无铅股权 •工作频率：0.4 GHz的〜6.0 GHz的 •最低噪声系数：1.61分贝at1.9 GHz的 相关增益：15分贝在1.9 GHz •1.9 GHz的性能调整为VSWR<2:1噪声系数：1.9分贝 增益：14分贝的P1dB：+17.5 dBm的输入IP3：+17.5 dBm的 •单电源5.0 V操作 应用 •蜂窝/ PCS基站radiocard LNA •高动态范围的放大器WLL，WLAN基站，和其他应用程序 |
