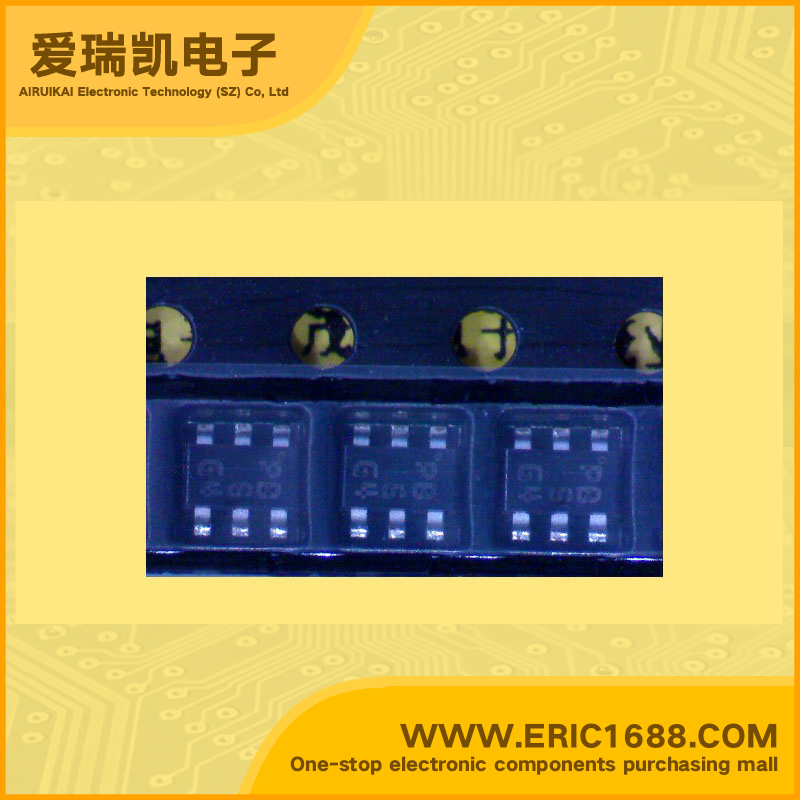

CPH6702 PNP+SBD -15V -1.5A 200~560 SOT-163/CPH6 marking PB switch and digital circuit application

Model：CPH6702
Mark / screen / code / typing：PB
Manufacturer：
Date Code：06NOPB 06+ROHS6KM
Package：SOT-163/CPH6
Standard Package：3000
Min Order：10

Hot selling goods

Product description

BJT TYPE	PNP
BJT V(BR)CBO Collector-Base Voltage(VCBO)	-15V
BJT Collector-Emitter Voltage(VCEO)	-15V
BJT Collector Current(IC)	-1.5A
BJT Transtion Frequency(fT)	350MHZ
BJT DC Current Gain(hFE)	200~560
BJT VCE（sat） Collector-Emitter Saturation Voltage	-0.18V
DIODE TYPE	SBD : Schottky Barrier Diode
DIODE VR Reverse Voltage	30V
DIODE Io Rectified Current	0.7A
DIODE Forward Voltage(Vf)	0.55V
Pc Power Dissipation	1.3W
Description & Applications	CPH3114+SBS006 PNP+SBD
