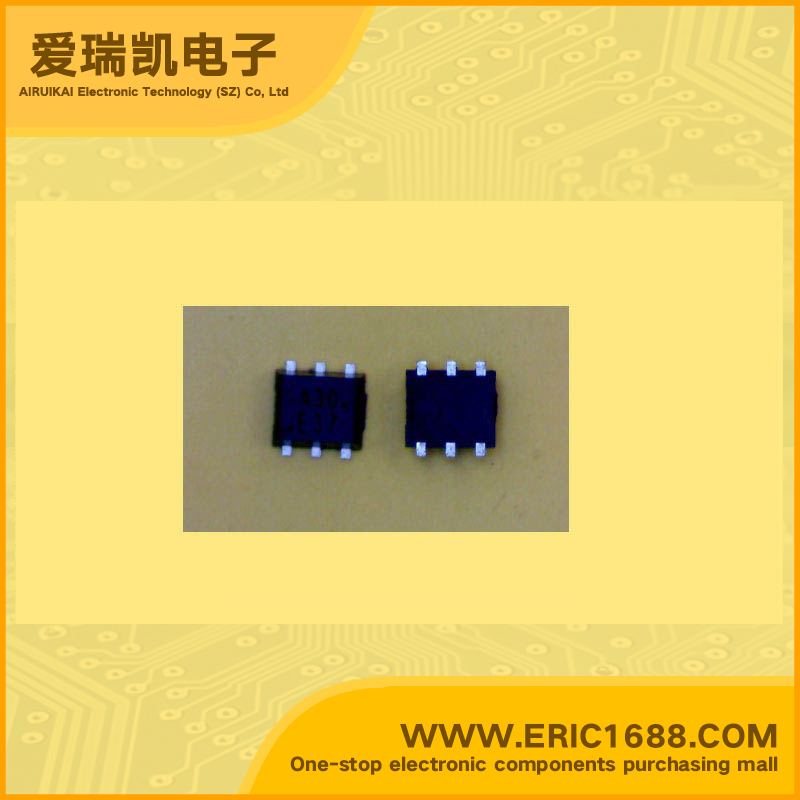

TK70630HCL LDO Voltage Regulator 3V 160mV/0.16V SOT-363/SON2017-6/SC70-6 marking A30 Short-Circuit Protection Over-Temperature Protection

Hot selling goods

Product description
电路数量
Number of Regulators
1
输入电压VIN
Voltage - Input
-0.4~16V
输出电压VOUT
Voltage - Output
3V
输出电流Io
Current - Output
100mA/0.1A
最大压降VDO
Voltage - Dropout
160mV/0.16V
带使能脚EN/CE(ON/OFF功能)
With Enable Pin
无 No
最大耗散功率Pd
Power dissipation
Description & Applications•LDO Regulator IC •Output current: 100mA, Peak 200mA •Active high on/off control •Excellent Ripple rejection ratio: 80dB (f=1kHz) 70dB (f=10kHz) •Output capacitance: Cout ≥ 0.47µF(Ceramic) •Output voltage accuracy: ±1.5% or ±50mV • Short circuit protection (Over current protection) •Internal thermal shutdown (Over heat protection) •Reverse bias protection • Any Electronic Equipment •Battery Powered Systems • Mobile Communication
描述与应用•LDO稳压器IC •输出电流:100mA,峰值200毫安 •主动高开/关控制 •优秀的纹波抑制比:80dB(全额F =1kHz时)70分贝(F =10KHZ) •输出电容COUT≥0.47μF(陶瓷) •输出电压精度:±1.5%或±50mV的 •短路保护(过电流保护) •内部热关断(过温保护) •反向偏压保护 •任何电子设备 •电池供电系统 •移动通信
