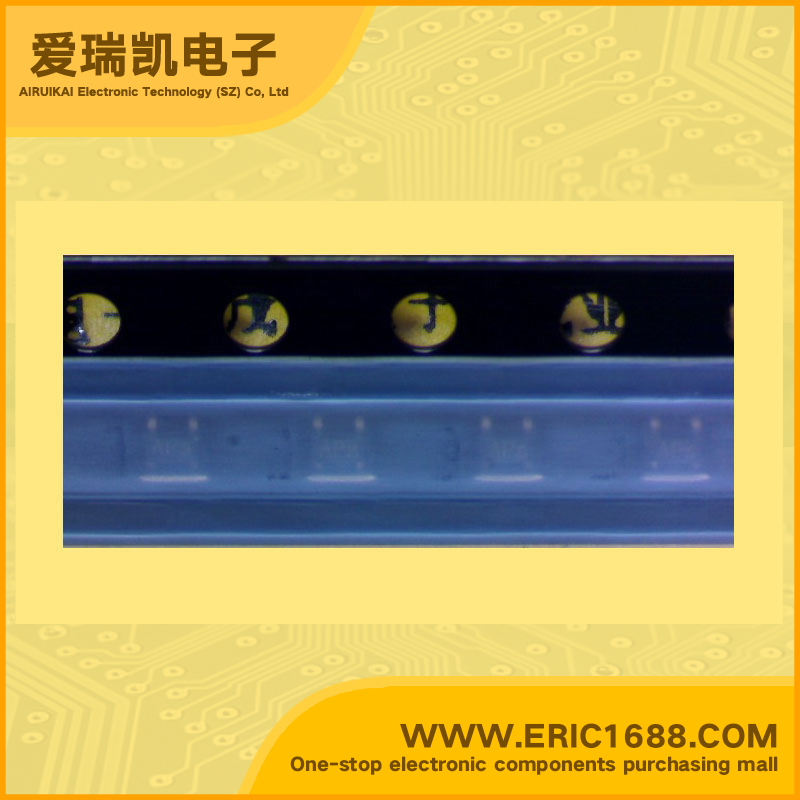

BFP520F NPN Transistors(BJT) 13V 40mA 45Ghz 70~200 SOT-543/TSFP-4 marking APS high gain low noise amplifier

Hot selling goods

Product description
集电极-基极反向击穿电压V(BR)CBO
Collector-Base Voltage(VCBO)
20V
集电极-发射极反向击穿电压V(BR)CEO
Collector-Emitter Voltage(VCEO)
2.5V
集电极连续输出电流IC
Collector Current(IC)
40mA
截止频率fT
Transtion Frequency(fT)
45Ghz
直流电流增益hFE
DC Current Gain(hFE)
70~200
管压降VCE(sat)
Collector-Emitter Saturation Voltage
耗散功率Pc
Power Dissipation
100mW/0.1W
Description & ApplicationsNPN Silicon RF Transistor For highest gain low noise amplifier at 1.8 GHz and 2 mA / 2 V Outstanding Gms = 23 dB Noise Figure F = 0.95 dB For oscillators up to 15 GHz Transition frequency fT = 45 GHz Gold metallization for high reliability SIEGET 45 - Line 45 GHz fT - Line
描述与应用NPN硅RF晶体管 对于最高增益低噪声放大器在1.8 GHz和2mA/2 V 杰出GMS= 23分贝 噪音系数F= 0.95分贝 对于振荡器高达15 GHz 过渡频率fT= 45 GHz的 镀金高可靠性 SIEGET45 - 线路 45 GHz的 FT - 线
