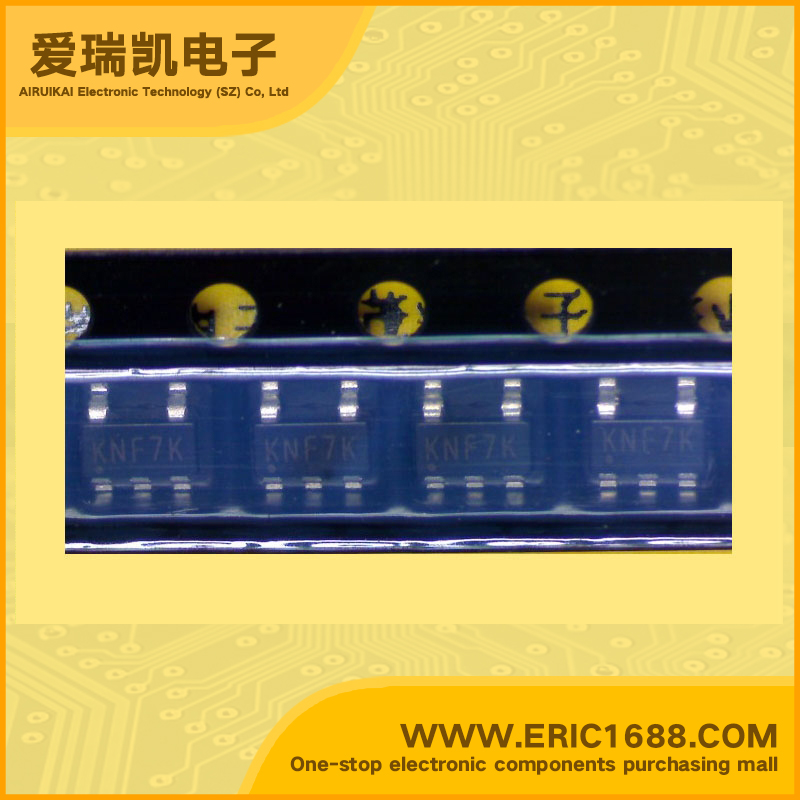

AAT3221IGV-3.3-2-T1 LDO Voltage Regulator 3.3V 180mV/0.18V With Enable Pin SOT-153/SOT23-5 marking KNF Short-Circuit Protection Over-Temperature Protection
| 电路数量 Number of Regulators | 1 |
| 输入电压VIN Voltage - Input | -0.3~6V |
| 输出电压VOUT Voltage - Output | 3.3V |
| 输出电流Io Current - Output | 150mA/0.15A |
| 最大压降VDO Voltage - Dropout | 180mV/0.18V |
| 带使能脚EN/CE(ON/OFF功能) With Enable Pin | 有 Yes |
| 最大耗散功率Pd Power dissipation | 667mW/0.667W |
| Description & Applications | 150mA NanoPower™ LDO Linear Regulator ;•1.1 µA Quiescent Current • Low Dropout: 200 mV (typical) • Guaranteed 150 mA Output • High accuracy: ±2% • Current limit protection • Over-Temperature protection • Extremely Low power shutdown mode • Low Temperature Coefficient • 1.8V to 3.5V • Stable operation with virtually any output capacitor type • Active high or low Enable pin • 5-pin SOT23 or 8-pin SC70JW packages • 4kV ESD • Cellular Phones • Notebook Computers • Portable Communication Devices • Handheld Electronics • Remote Controls • Digital Cameras • PDAs |
| 描述与应用 | 纳功率™150MA LDO线性稳压器;•1.1μA的静态电流 •低压差：200 mV（典型值） •保证150 mA输出 •高准确度：±2％ •电流限制保护 •过温保护 •极低功耗关断模式 •低温度系数 •1.8V至3.5V 几乎任何类型的输出电容器的稳定运行 •高或低使能引脚 •5引脚SOT23封装或8引脚SC70JW封装 •4KV ESD •蜂窝电话 •笔记本电脑 •便携式通信设备 •手持式电子 •远程控制 •数码相机 •掌上电脑 |
