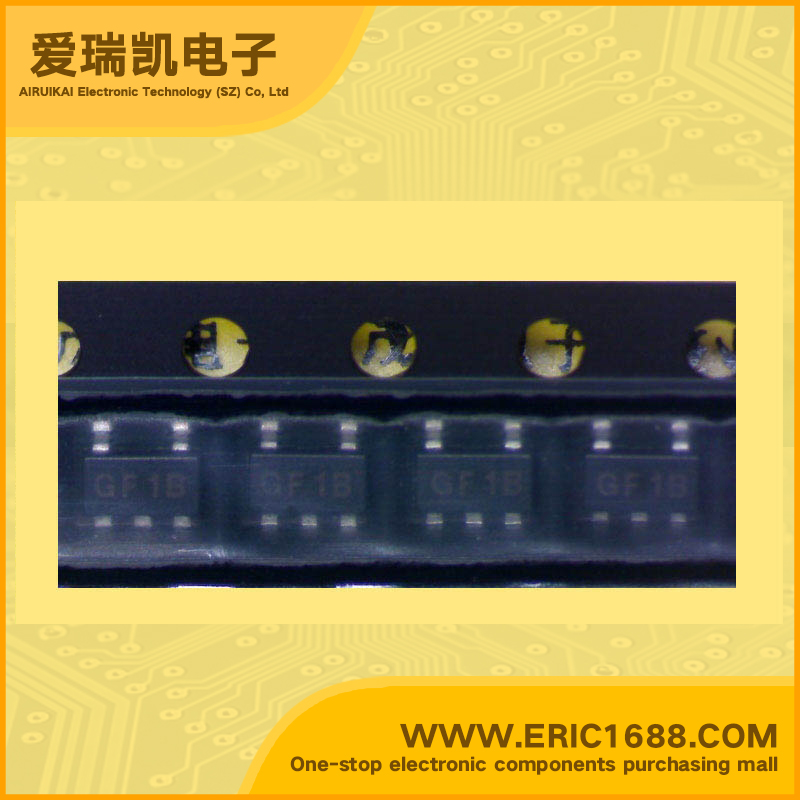

R1110N351B LDO Voltage Regulator 3.5V 170mV/0.17V With Enable Pin SOT-153/SOT23-5 marking GF Short-Circuit Protection Over-Temperature Protection

Hot selling goods

Product description
电路数量
Number of Regulators
1
输入电压VIN
Voltage - Input
9V
输出电压VOUT
Voltage - Output
3.5V
输出电流Io
Current - Output
100mA/0.1A
最大压降VDO
Voltage - Dropout
170mV/0.17V
带使能脚EN/CE(ON/OFF功能)
With Enable Pin
有 Yes
最大耗散功率Pd
Power dissipation
250mW/0.25W
Description & ApplicationsLOW NOISE 150mA L.D.O REGULATOR;•Ultra-Low Supply Current TYP. 35µA • Standby Current TYP. 0.1µA • Dropout Voltage=TYP. 0.2V (IOUT=100mA) • High Ripple RejectionTYP. 70dB (f=1kHz) • High Accuracy Output Voltage±2.0% • Low Temperature-Drift Coefficient of Output VoltageTYP. ±100ppm/˚C • Excellent Line RegulationTYP. 0.05%/V • Pinout Similar to the LP2980 • Power source for portable communication tools, cameras and VCRs. • Power source for battery-powered equipment.
描述与应用低噪声150毫安的稳压器L.D.O;•超低电源电流的典型值。 35μA •待机电流典型值。 0.1μA •漏失电压= TYP。 0.2V(IOUT=100毫安) •高纹波RejectionTYP。 70分贝(F=1kHz时) •高输出电压精度±2.0% •低的温度-漂移系数的 输出VoltageTYP。温度系数±100ppm/˚C 优秀线RegulationTYP。 0.05%/ V •引脚类似LP2980 •电源源适用于便携式的的通讯工具,的摄像机和录像机。 •电源源用于电池-动力的的设备。
