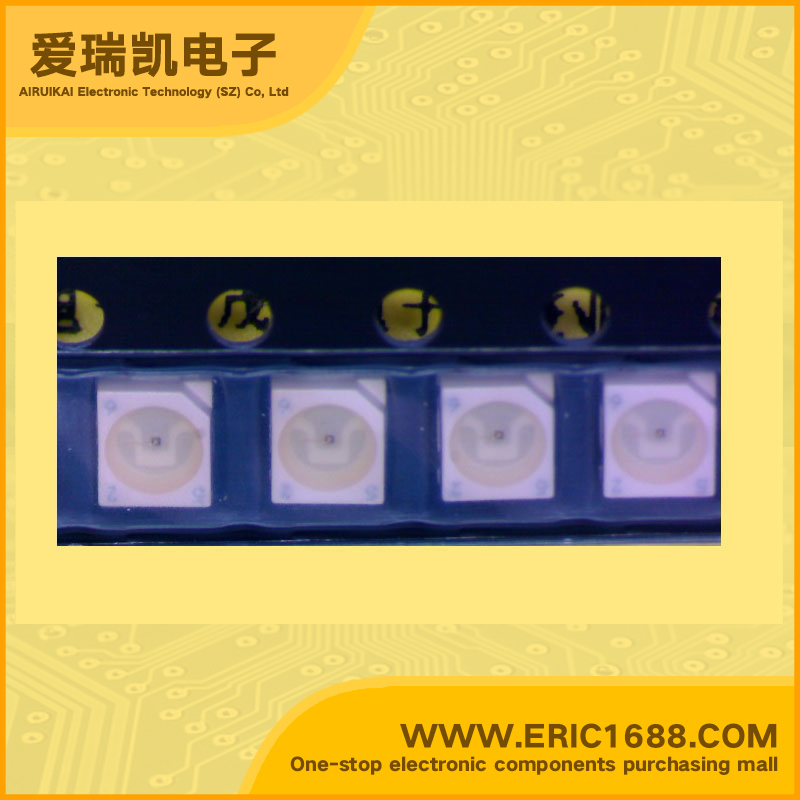

TLYE1100B LED Doide 2v 20mA 120mW 1210yellow
| 颜色 Color | 黄色 Yellow |
| 流明Lv(mcd) Luminous intensity | 100mcd |
| 正向电压(VF) Forward Voltage(Vf) | 2v |
| 正向电流(IF) ForwArd Current(If) | 20mA |
| 主波长λd(nm) Dominant Wavelength | 587nm |
| 峰值波长λp(nm) Peak Wavelength | 120mW |
| 最大耗散功率Pd Power dissipation | 120mW |
| Description & Applications | •Surface-mount devices •3.2 (L) × 2.8 (W) × 1.9 (H) mm •Flat-top type •InGaAℓP LEDs •High luminous intensity •Low drive current, high-intensity light emission •Colors: red, orange, yellow, green, pure green •Pb-free reflow soldering is possible |
| 描述与应用 | •表面贴装设备 •3.2（L）×2.8（W）×1.9（高）mm •平顶型 •InGaAℓP发光二极管 •高发光强度 •低驱动电流，高亮度发光 •颜色：红色，橙色，黄色，绿色，纯绿色 •无铅回流焊接是可以的 |
