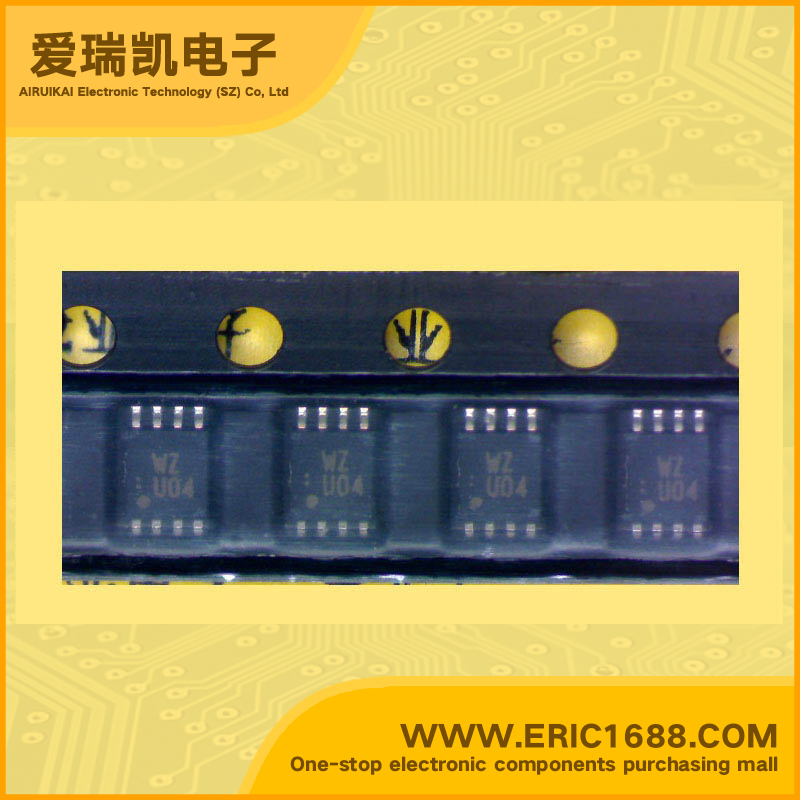

Integrated Circuit(IC) inverter TC7WZU04FK US8 marking WZU04

Hot selling goods

Product description
逻辑类型
Logic Type
反相器 Inverter
电路数
Number of Circuits
1
输入数
Number of Inputs
1
电源电压Vcc
Voltage - Supply
1.65V~5.5V
静态电流Iq
Current - Quiescent (Max)
1µA
输出高,低电平电流
Current - Output High, Low
-16mA,16mA
低逻辑电平
Logic Level - Low
0.15v~0.2v
高逻辑电平
Logic Level - High
0.8v~0.85v
传播延迟时间@Vcc,CL
Max Propagation Delay @ V, Max CL
3ns @ 3.3V,30pF
Description & ApplicationsTriple Inverter (Un-Buffer) ;• High output drive: ±16 mA (min) at VCC = 4.5 V • Low quiescent power: ICC < 1μA (max.) at VCC = 5.5 V, Ta=25℃ • Operation voltage range: VCC (opr) = 1.65~5.5 V • 5.5-V tolerant inputs
描述与应用三重逆变器(非缓冲区);•高输出驱动:±16 mA(分钟)在VCC =4.5 V •低静态功耗:ICC<1μA(最大值)                                                                 在VCC =5.5 V,大= 25℃ •工作电压范围:VCC(OPR)  =1.65〜5.5 V •5.5-V宽容输入
