PZTA56 PNP transistors（BJT） -80V -500mA/-0.5A 50MHz 100 -250mV/-0.25V SOT-223/TO-261AA marking PZTA56 low current/low voltage

Model：PZTA56

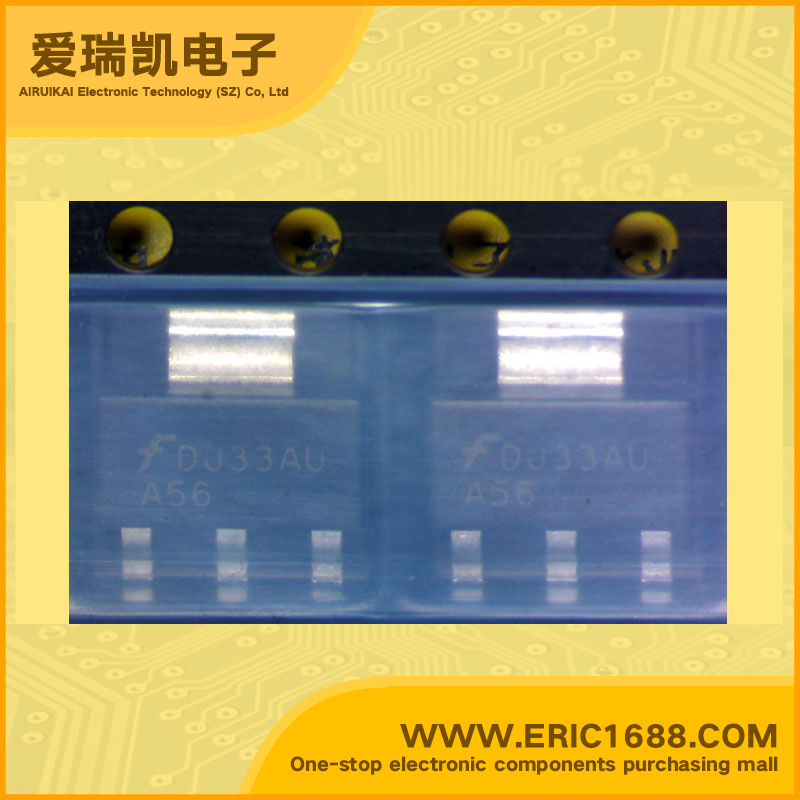

Mark / screen / code / typing：A56
Manufacturer：
Date Code：10NOPB 10NOPB
Package：SOT-223
Standard Package：1000
Min Order：10

Hot selling goods

Product description

集电极-基极反向击穿电压V(BR)CBO Collector-Base Voltage(VCBO)	-80V
集电极-发射极反向击穿电压V(BR)CEO Collector-Emitter Voltage(VCEO)	−80V
集电极连续输出电流IC Collector Current(IC)	-2A
截止频率fT Transtion Frequency(fT)	50MHz
直流电流增益hFE DC Current Gain(hFE)	100
管压降VCE（sat） Collector-Emitter SaturationVoltage	-250mV/-0.25V
耗散功率Pc PoWer Dissipation	800mW/0.8W
Description & Applications	PNP General Purpose Amplifier This device is designed for use as a general purpose amplifier and switch requiring collector currents to 300 mA.
描述与应用	PNP通用放大器这种装置是专为使用作为一般用途的需要集电极电流300 mA的电流放大器和开关而设计。
