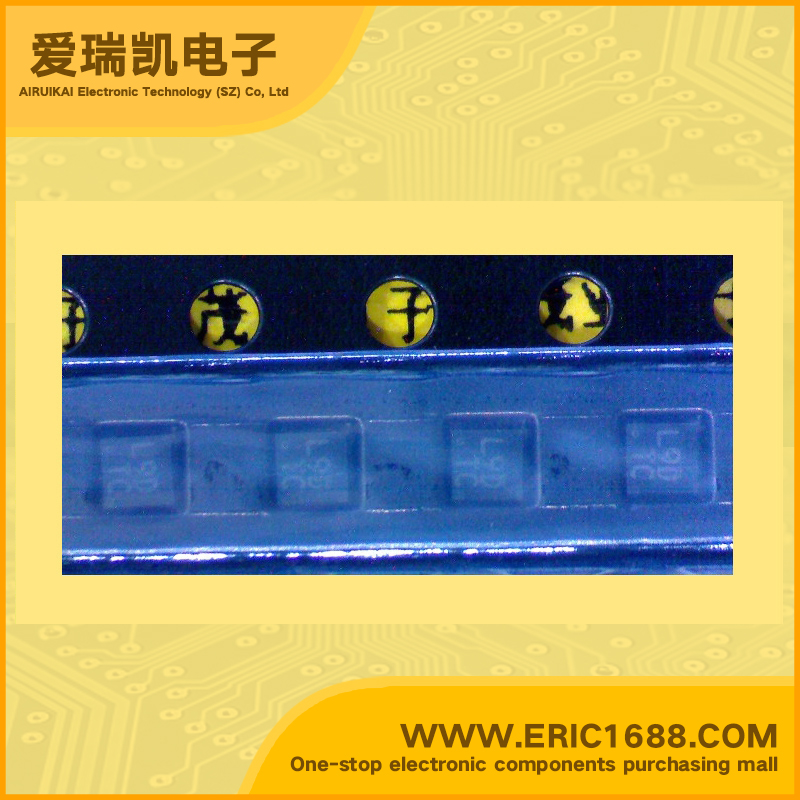

SIP4282DVP-3-T1-E3 MOSFET/Bridge Driver PMIC non-inverting 1.8V ~ 5.5V 3A SC75-6 marking L9 Load switch in portable applications
| 驱动器类型（配置/类型） Type/Configuration | 高端开关 High Side Switch |
| 驱动器数量（配置数） Number of Configurations | |
| 输入类型 Input Type | 非反相 Non-Inverting |
| 导通电阻 On-State Resistance | 105mΩ |
| 峰值输出电流 Current - Peak | 3A |
| 输出端数量 Number of Outputs | 1 |
| 电源电压 Voltage - Supply | 1.8V ~ 5.5V |
| Description & Applications | FEATURES • 1 A Slew Rate Controlled Load Switch in PPAK SC75-6 • 1.8 V to 5.5 V Input Voltage range • Very Low RDS(ON), typically 140 mΩ at 5 V and 175 mΩ at 3 V • Slew rate limited turn-on time options - SiP4282-1: 1 ms - SiP4282-3: 100 µs • Fast shutdown load discharge option • Low quiescent current, typically 2.5 µA • Low Shutdown Current < 1 µA • TTL/CMOS input logic level • UVLO of 1.4 V • SC-75 Package APPLICATIONS • Cellular telephones • Digital still cameras • Personal digital assistants (PDA) • Hot swap supplies • Notebook computers • Personal communication devices • USB |
| 描述与应用 | 特点 •1摆率控制的负荷开关在PPAK SC75-6 •1.8 V至5.5 V输入电压范围 •非常低的RDS（ON），通常为140mΩ在5 V和175mΩ在3 V •压摆率限制开启时间选项 - SiP4282-1：1毫秒 - SiP4282-3：100微秒 •快速关断负载放电选项 •低静态电流，典型值为2.5μA •低关断电流<1μA •TTL/ CMOS输入逻辑电平 •UVLO为1.4 V •SC-75封装 应用 •蜂窝电话 •数码相机 •个人数字助理（PDA） •热插拔用品 •笔记本电脑 •个人通信设备 •USB |
