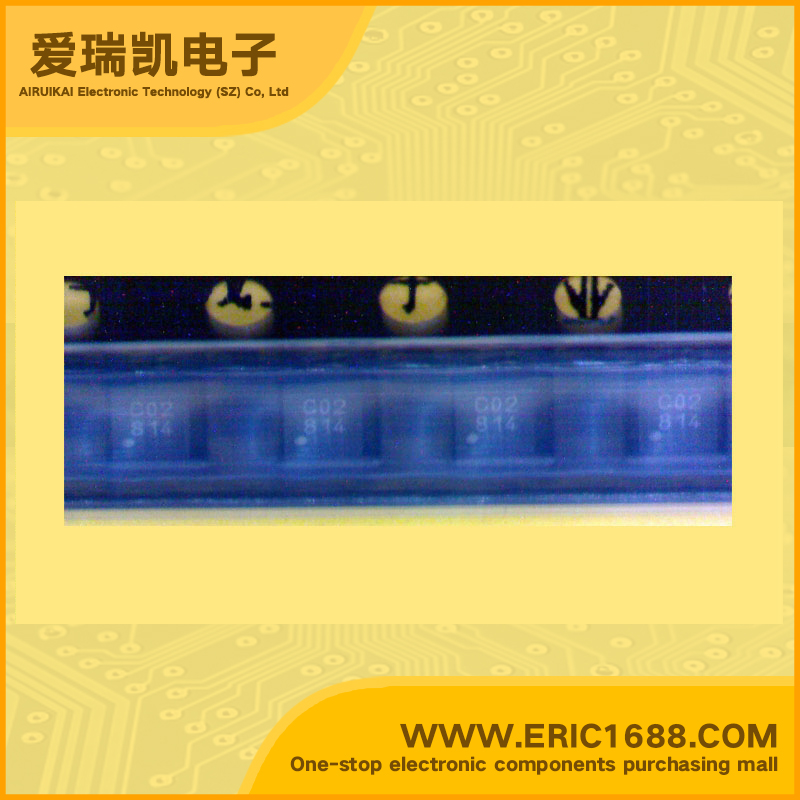

R5323K013B LDO Voltage Regulator 1.5~4V With Enable Pin PLP1820-6 marking C02 Short-Circuit Protection Over-Temperature Protection

Hot selling goods

Product description
电路数量
Number of Regulators
2
输入电压VIN
Voltage - Input
6.5V
输出电压VOUT
Voltage - Output
1.5~4V
输出电流Io
Current - Output
150mA/0.15A
最大压降VDO
Voltage - Dropout
带使能脚EN/CE(ON/OFF功能)
With Enable Pin
有 Yes
最大耗散功率Pd
Power dissipation
880mW/0.88W
Description & Applications150mA 2ch LDO REGULATOR ;•Low Supply Current Typ. 90µA (VR1, VR2) •Standby Mode Typ. 0.1µA (VR1, VR2) • Low Dropout Voltage Typ. 0.22V (IOUT=150mA , Output Voltage Type) • High Ripple Rejection Typ. 75dB(VOUT<= 2.4V) , Typ. 70dB(VOUT<= 2.5V)(f=1kHz) Typ. 65dB(VOUT<= 2.4V) , Typ. 60dB(VOUT<= 2.5V) (f=10kHz) • Low Temperature-drift Coefficient of Output Voltage Typ. ±100ppm/°C • Excellent Line Regulation Typ.0.02%/V • High Output Voltage Accuracy ±2.0% • Output Voltage Stepwise setting with a step of 0.1V in the range of 1.5V to 4.0V is possible • Built-in chip enable circuit (A/B: active high) • Built-in fold-back protection circuitTyp. 40mA (Current at short mode) • Ceramic Capacitor is recommended. (1.0µF or more) • Power source for handheld communication equipment. • Power source for electrical appliances such as cameras, VCRs and camcorders. • Power source for battery-powered equipment.
描述与应用双声道150MA LDO稳压器;•低电源电流典型。 90μA(VR1,VR2) •待机模式典型。 0.1μA(VR1,VR2) •低压差典型。 0.22V(IOUT=的150mA,输出电压类型) •高纹波抑制比典型。 75分贝(VOUT=2.4V),典型值。 70分贝(VOUT= 2.5V)(F =1kHz时) 典型。 <65分贝(VOUT=2.4V),典型值。 60分贝(VOUT= 2.5V)(F =10kHz时) •低温度漂移系数的输出电压典型值。温度系数±100ppm/°C •卓越的线路调整Typ.0.02%/ V •高输出电压精度±2.0% •输出电压的范围内,以每步0.1V逐步设置  1.5V到4.0V •内置芯片使能电路(A / B:主动高) •内置折返保护circuitTyp。 40mA(附加电流在很短的模式) •陶瓷电容器建议。 (1.0μF或多种) •手持通信设备的电源。 •电源的电器,如摄像机,录像机和摄像机。 •电池供电设备的电源。
