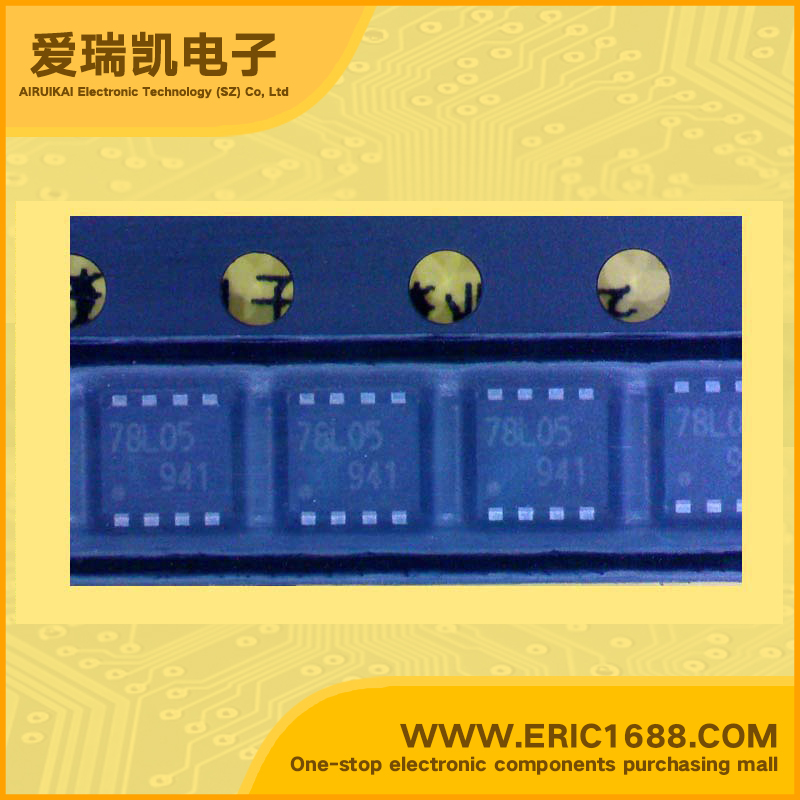

TA78L05PF Voltage Regulator 5V 1.7V SOT-89 marking 78L05 Short-Circuit Protection Over-Temperature Protection
| 电路数量 Number of Regulators | 1 |
| 输入电压VIN Voltage - Input | 35V |
| 输出电压VOUT Voltage - Output | 5V |
| 输出电流Io Current - Output | 150mA/0.15A |
| 最大压降VDO Voltage - Dropout | 1.7V |
| 带使能脚EN/CE(ON/OFF功能) With Enable Pin | 无 No |
| 最大耗散功率Pd Power dissipation | 500mW/0.5W |
| Description & Applications | TOSHIBA Bipolar Linear Integrated Circuit Silicon Monolithic. * Housed in a very small and thin PS-8 package, the TA78L**PF series of fixed-voltage monolithic integrated circuit voltage regulators is designed for a wide range of applications. One of these regulators can drive up to 0.15 A of output current. The series offers devices with various output voltages: 5 V, 6 V, 7 V,8 V, 9 V, 10 V, 12 V, and 15V. * Maximum output current: 0.15 A * Output voltage accuracy: VOUT ± 4% (@Tj =25°C) * Protection function: Overcurrent/Thermal shutdown |
| 描述与应用 | 东芝双极型线性集成电路硅单片。 坐落在一个非常小而薄的PS-8封装，TA78L** PF系列固定电压单片集成电路稳压器是专为广泛的应用。这些监管机构可以驱动多达0.15 A的输出电流。该系列产品提供设备具有多种输出电压：5 V，6 V，7 V，1.8 V，9 V，10 V，12 V和15V。 *最大输出电流：0.15 A *输出电压精度：VOUT±4％（@ TJ= 25°C） *保护功能：过流/热关断 |
