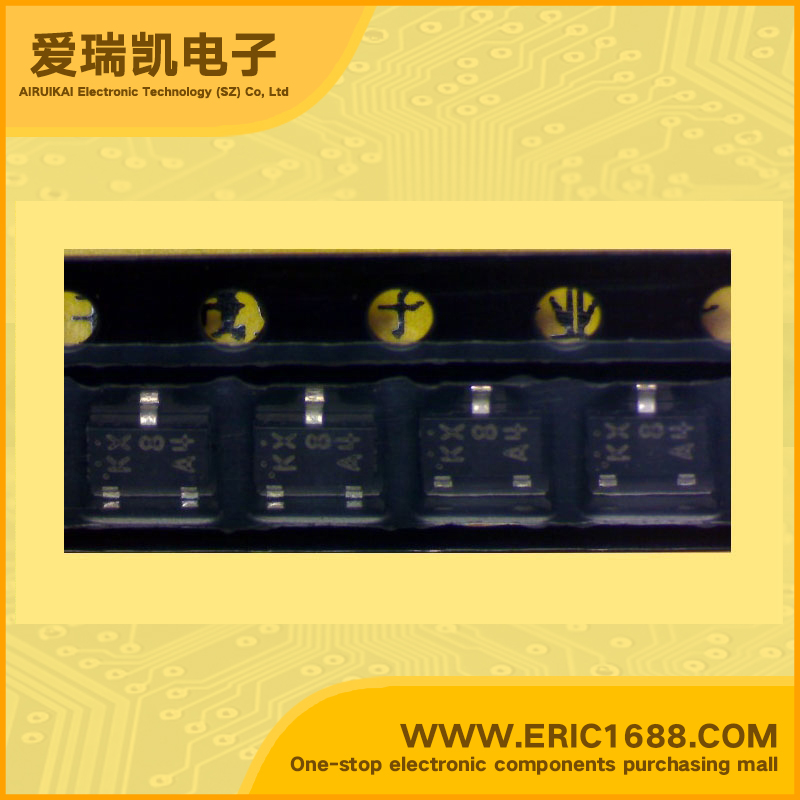

CPH3422 MOSFET N-Channel 60V 1A SOT-23/SC-59 marking KX enhancement mode/logic level

Model：CPH3422
Mark / screen / code / typing：KX
Manufacturer：
Date Code：05NOPB 08+ROHS
Package：SOT-23/SC-59
Standard Package：3000
Min Order：10

Hot selling goods

Product description

最大源漏极电压Vds Drain-Source Voltage	60V
最大栅源极电压Vgs(±) Gate-Source Voltage	20V
最大漏极电流Id Drain Current	1A
源漏极导通电阻ΩRds DΩ/Ohmain-SouΩ/Ohmce On-State Ω/Ohmesistance	6.3Ω/Ohm @500mA,10V
开启电压Vgs（th） Gate-Source Threshold Voltage	1.2v-2.6V
耗散功率Pd Power Dissipation	900mW/0.9W
Description & Applications	• Low ON-resistance. • Ultrahigh-speed switching. • 4V drive.
描述与应用	•低导通电阻。 •超高速开关。 •4V驱动器
