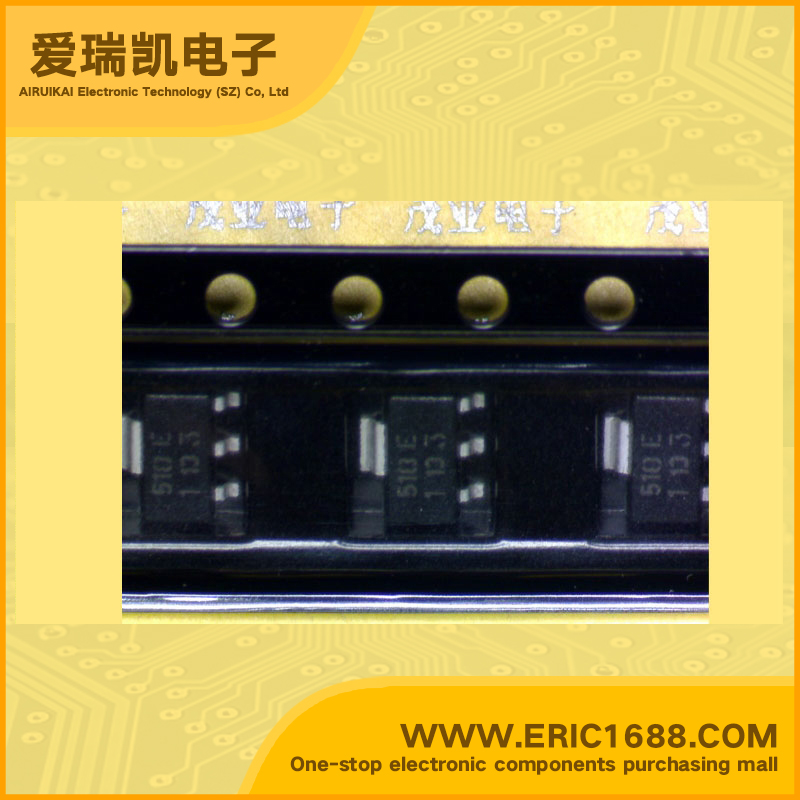

HALL IC HAL518SF-E SOT-89 marking 518E

Hot selling goods

Product description
感应范围
Sensing Range
10mT 跳闸,-10mT 释放 10mT Trip,-10mT Release
类型
Type
双极卡锁
电源电压
Voltage - Supply
3.8 V ~ 24 V
电源电流
Current - Supply
3mA
输出电流
Current - Output (Max)
20mA
Description & ApplicationsHall Effect Sensor Family in CMOS technology Features: – switching offset compensation at typically 62 kHz – operates from 3.8 V to 24 V supply voltage – overvoltage protection at all pins – reverse-voltage protection at VDD-pin – magnetic characteristics are robust regarding mechanical stress effects – short-circuit protected open-drain output by thermal shut down – operates with static magnetic fields and dynamic magnetic fields up to 10 kHz – constant switching points over a wide supply voltage range – the decrease of magnetic flux density caused by rising temperature in the sensor system is compensated by a built-in negative temperature coefficient of the magnetic characteristics – ideal sensor for applications in extreme automotive and industrial environments – EMC corresponding to DIN 40839
描述与应用在CMOS技术的霍尔效应传感器系列 特点: - 通常为62 kHz的开关偏移补偿 - 从3.8 V至24 V电源电压 - 在所有引脚过压保护 - VDD引脚的反向电压保护 - 磁特性强大的机械应力的影响 - 短路保护开漏输出热关闭 - 与静态磁场和动态磁场到10千赫工作 - 在很宽的电源电压范围内恒定的开关点 - 传感器系统中的温度升高引起的磁通密度的减少来补偿由一个内置的磁特性的负温度系数的 - 极端的汽车和工业环境中的应用程序的理想传感器 - EMC对应DIN40839
