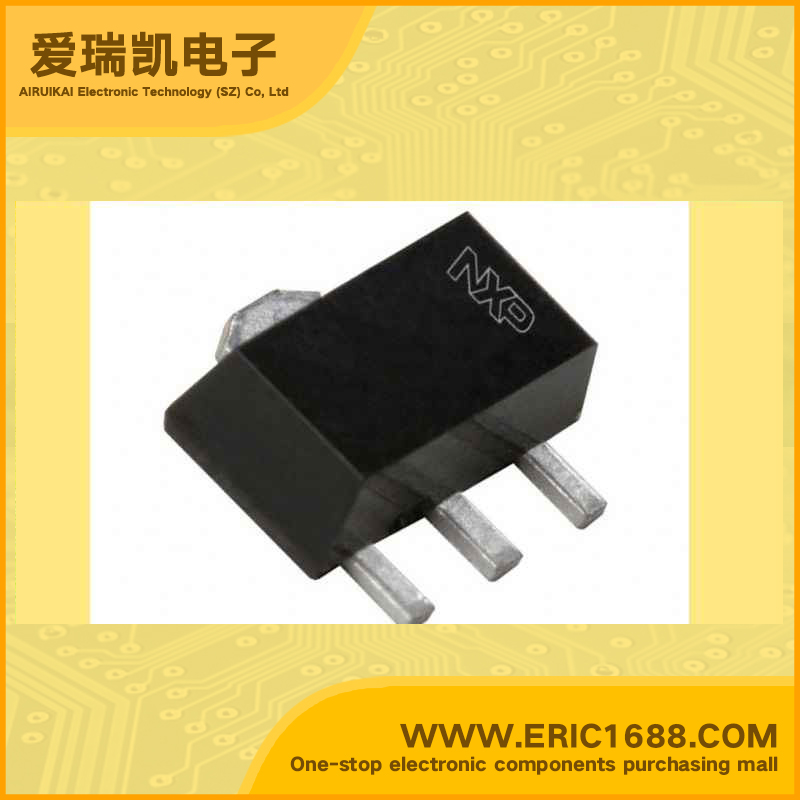

PBSS5330X PNP transistors（BJT） -30V -3A 100MHz 175~450 -320mV/-0.32V SOT-89/SC-62 marking P1S load driver/DC-DCconvertor/battery chargers
| 集电极-基极反向击穿电压V(BR)CBO Collector-Base Voltage(VCBO) | -30V |
| 集电极-发射极反向击穿电压V(BR)CEO Collector-Emitter Voltage(VCEO) | −30V |
| 集电极连续输出电流IC Collector Current(IC) | -3A |
| 截止频率fT Transtion Frequency(fT) | 100MHz |
| 直流电流增益hFE DC Current Gain(hFE) | 175~450 |
| 管压降VCE（sat） Collector-Emitter SaturationVoltage | -320mV/-0.32V |
| 耗散功率Pc PoWer Dissipation | 550mW/0.55W |
| Description & Applications | 30 V low VCE(sat) PNP transistor FEATURES • SOT89 (SC-62) package • Low collector-emitter saturation voltage VCEsat • High collector current capability: IC and ICM • Higher efficiency leading to less heat generation • Reduced printed-circuit board requirements. APPLICATIONS • Power management – DC/DC converters – Supply line switching – Battery charger – LCD backlighting. • Peripheral drivers – Driver in low supply voltage applications (e.g. lamps and LEDs) – Inductive load driver (e.g. relays, buzzers and motors). |
| 描述与应用 | 30伏的低VCE（sat）的PNP晶体管 特点 •SOT89（SC-62）封装 •低集电极 - 发射极饱和电压VCE监测 •高集电极电流能力：IC和ICM •更高的效率，导致产生的热量少 •减少印刷电路板的要求。 应用 •电源管理 - DC/ DC转换器 - 电源线开关 - 电池充电器 - LCD背光。 •外设驱动程序 - 驱动器，在低电源电压应用（如灯和LED） - 感性负载驱动器（如继电器，蜂鸣器和电机）。 |
