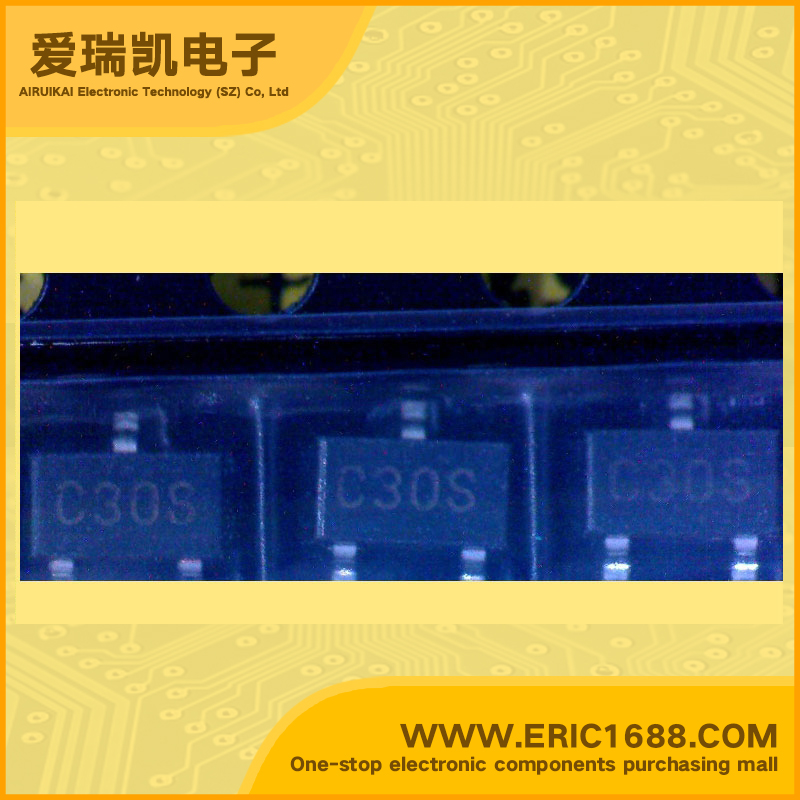

CM2830SIM23TR LDO Voltage Regulator 3.3V 300mV/0.3V SOT-23 marking C3 Short-Circuit Protection Over-Temperature Protection

Hot selling goods

Product description
电路数量
Number of Regulators
1
输入电压VIN
Voltage - Input
7V
输出电压VOUT
Voltage - Output
3.3V
输出电流Io
Current - Output
300mA/0.3A
最大压降VDO
Voltage - Dropout
300mV/0.3V
带使能脚EN/CE(ON/OFF功能)
With Enable Pin
无 No
最大耗散功率Pd
Power dissipation
330mW/0.33W
Description & Applications300mA CMOS LDO;•Very Low Dropout Voltage •Low Current Consumption: Typ. 30 µA, Max. 35 µA •High Accuracy Output Voltage: +/- 1.5% •Guaranteed 300mA Output •Input Range up to 7.0V • Thermal Shutdown •Current Limiting •Factory Pre-set Output Voltages •Short Circuit Current Fold-Back •Low Temperature Coefficient
描述与应用300mA的CMOS LDO;•非常低压差电压 •低电流消耗:典型。 30μA,最大。 35μA •高精度输出电压:+/ - 1.5% •保证300mA输出 •高达7.0V的输入电压范围 •热关断 •电流限制 •工厂Pre-set输出电压 •短路电流折返 •低温度系数
