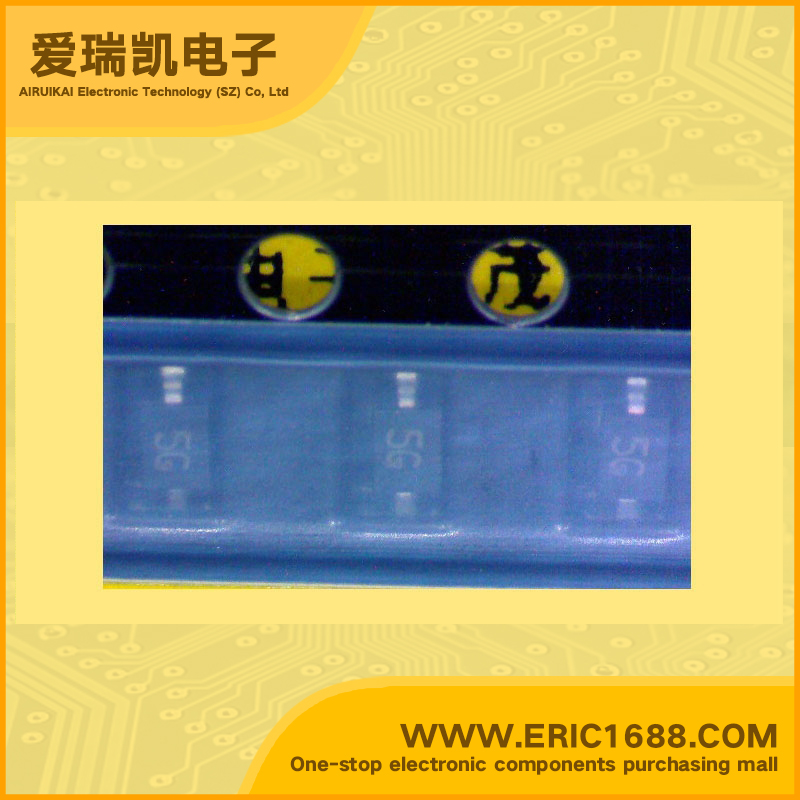

PG05GBUSC TVS/ESD 5V 24A SOD323/USC/0805-5V marking 5G
| 极性 Polarization | 双向 Bidirectional |
| 反向关断电压/工作电压VRWM Reverse Standoff Voltage | 5V |
| 反向击穿电压VBR Breakdown Voltage | 6V |
| 峰值脉冲耗散功率PPPM Peak Pulse Power Dissipation | 350W |
| 峰值脉冲电流IPPm Peak Forward Surge Current | 24A |
| 额定耗散功率Pd Power dissipation | |
| Description & Applications | Features ·Single Line TVS Diode for ESD Protection in Portable Electronics ·350 Watts peak pulse power (tp=8/20μs) ·Transient protection for data lines to IEC 61000-4-2(ESD) 15kV(Air), 8kV(Contact) IEC 61000-4-4(EFT) 40A(tp=5/50ns) IEC 61000-4-5(Lightning) 24A(tp=8/20μs) ·Bidirectional Type Pin Configuration Structure. ·Small package for use in portable electronics. ·Suitable replacement for Multi-Layer Varistors in ESD protection applications. ·Protects on I/O or power line. ·Low clamping voltage. ·Low leakage current. |
| 描述与应用 | 特性 ·单线TVS二极管的ESD保护便携式电子产品 ·350瓦峰值脉冲功率（TP =8/20μS） ·瞬态保护数据线 IEC61000-4-2（ESD）15kV（空气），8kV（接触） IEC61000-4-4（EFT）40A（TP =5/50ns） IEC61000-4-5（闪电）24A（TP =8/20μS） ·双向型引脚配置结构 ·使用小包装便于便携式产品使用 ·在ESD保护应用是压敏电阻器的合适替代品 ·保护I / O或电源线 ·低钳位电压。 ·低漏电电流 |
